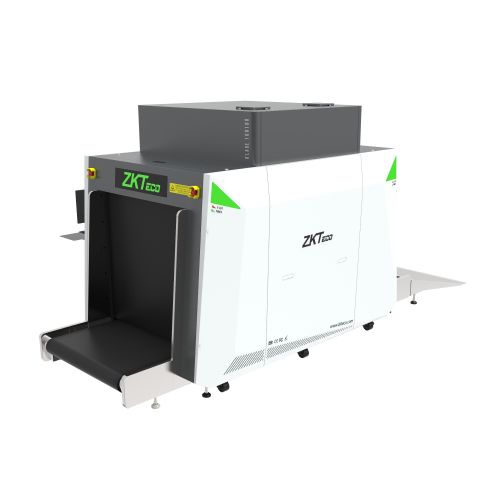

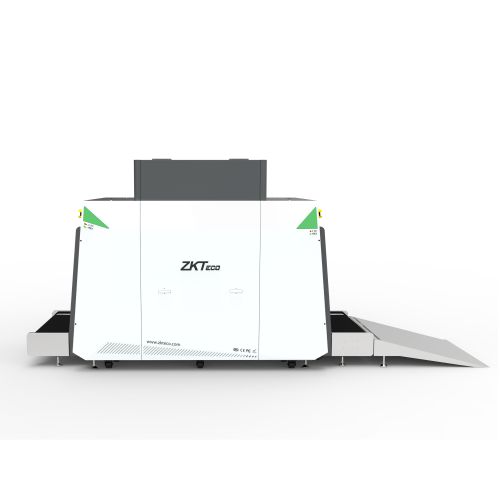

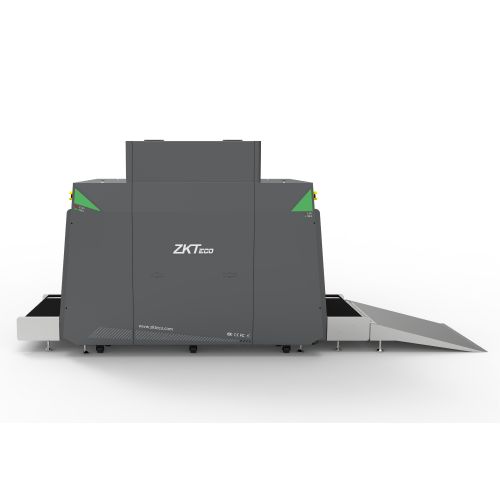

BLADE100100 X-Ray Baggage Inspection

BLADE100100 is an X-ray baggage inspection system with a tunnel size of 1010*1010(mm) which provides an effective inspection on big baggage and other items. It helps to identify suspicious items such as weapons, liquids, explosives, drugs, knives, fire guns, bombs, toxic substances, flammable substances, ammunition and other dangerous objects which may lead to potential safety hazard by atomic number identification. High image quality in combination with automatic identification of suspicious objects allows the operator to quickly and effectively evaluate any luggage content.


  • Real-time detection to aid operators in identifying suspicious item
  • Typical steel penetration up to 35mm
  • Startup with fingerprint
  • Uninterruptible Power Supply (UPS)
  • Equipped with fold-able rack
  • Adjustable conveyor Speed
  • Real-time Remote Monitoring System
  • Luggage image and Walk Through Metal Detector status display on the same screen
  • Threat Image Projection (TIP)

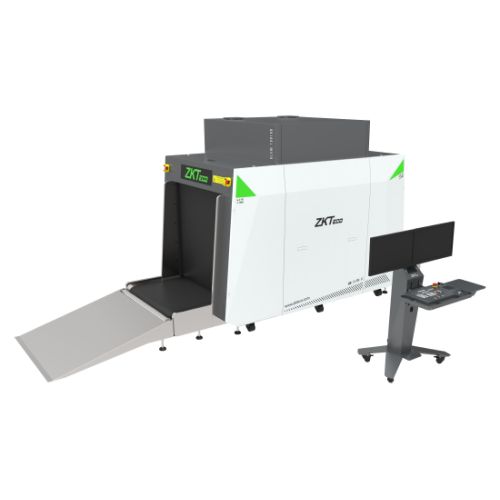

  • Operator desk with two monitors


  • Video Surveillance
  • Gray Paint
  • Eyes on Function (eye tracking technology to follow the users’ eyes as they are operating x-ray
    inspection. There will be a prompt when the operator’s eyes are off the screen.)


GL Exclusive Feature

Technical Characteristics:

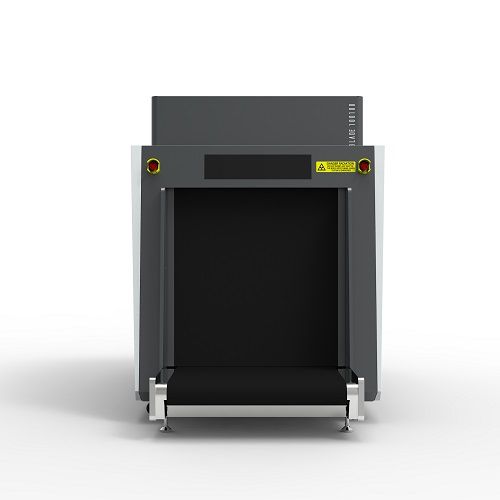

Tunnel Dimensions(W*H): 1010mm*1010mm
 Conveyor Speed:  0.20m/sec~0.40m/sec
Load on Conveyor:  Max 200kg (evenly distributed)
Space Definition:  HorizontalΦ1.0mmVerticalΦ2.0mm
 Steel Penetration: 35mm(guaranteed); 38mm(typical)
 Wire Resolution: 38AWG(guaranteed);40AWG(typical)
Dual-energy Detector:  Yes
Number of Colors in X-ray Image:  3
Dimensions(L*W*H): 4282mm*1482mm*1917mm
Dimensions of Operator Desk(L*W*H): 797mm*789mm*1140mm
Package Dimensions(L*W*H):  2900mm*1500mm*2100mm
Weight: 1260kg+70kg(Operator Desk)
Package Weight: 1530kg
Film Safety: ASA/ISO1600 standard of film safety
Single Inspection Dosage Rate: ≤1.0μGy
Operating Environment:
Operating Temperature: -10°C to+45°C
Storage Temperature: -20°C to+60°C
Humidity: 5-95%,non condensing
Power Supply: 230VAC+/-10%/60/50Hz(EU)
Power Consumption: Approx.1.0kVA
Sound Pressure: <55.8dB(A)
X-ray Generator:
 Tube Current: 0.5-1.2mA(adjustable)
 Anode Voltage: 150-170kV(adjustable)
Generator Cool: Seal oil cooling/100%
Computer Specification:
Processor: I7-7700
Monitor: 21”LED color
Memory: 8GB DDR4
Hard Drive: 240GB SSD+1TB HDD
Graphic Card: NVIDIA GeForce GTX 1660 Ti
USB Port: 4ports

Software Features

  • Perfect View (PV)
  • Black / White (B/W)
  • Pseudo Colors (PS)
  • Inverse View (IN)
  • High Penetration (HP)
  • Real-time Image Processing
  • Image Zoom(64x)
  • Image of Previous Baggage
  • Programmable Function Keys
  • Baggage Counter
  • Date / Time Indicator
  • Threat Image Projection (TIP)
  • Automatic Identification of Suspicious
  • Cloud Remote Control
  • Status Monitoring of Walk Through
  • Metal Detector
