Chat for Price

In stock

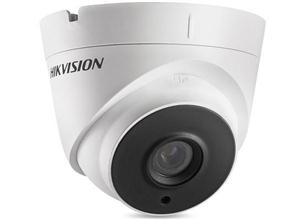

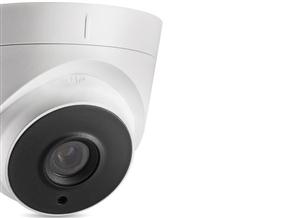

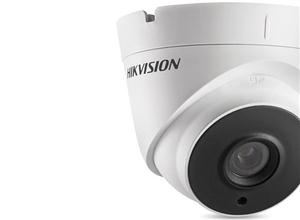

1.0 Megapixel high-performance CMOS

????????? Analog HD output, up to 720P resolution

????????? True Day/Night

????????? DNR, Smart IR

?????????EXIR technology, up to 20m/40m IR distance

????????? IP66 weatherproof

SKU: DS-2CE56C0T-IT1/IT3 Categories: , ,
Image Sensor: 1MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 1296(H)x732(V)
Min. Illumination: 0.1 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional), Angle of View: 70.9?(3.6mm), 92?(2.8mm), 56.7?(6mm), 38.6?(8mm), 27.5?(12mm), 17.7?(16mm)
Lens Mount: M12
Adjustment Range: Pan: 0 – 360?, Tilt: 0 – 75?, Rotation: 0 – 360?
Day& Night: IR cut filter with auto switch
Video Frame Rate: 720p@25fps/720p@30fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
Operating Conditions: -40 ?C – 60 ?C (-40 ?F – 140 ?F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC?15%
Power Consumption: Max. 4W
Weather Proof: IP66
IR Range: Up to 40m
Dimension: ?114.6 ? 89.1mm(?4.5? ? 3.5?)
Weight: 350 g

Additional information


AHD Camera, CCTV, Hikvision
