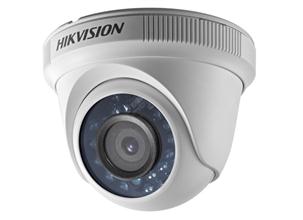

DS-2CE56C2T-IRP

DS-2CE56C2T-IRP

13,853

?????1.3 Megapixel high-performance CMOS

?????Analog HD output, up to 720P resolution

?????True Day/Night

?????DNR, Smart IR

SKU: DS-2CE56C2T-IRP Categories: , ,
  • Description
  • Additional information
  • Reviews (0)

Description

Camera
Image Sensor: 1.3MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 1280(H)x960(V)
Min. Illumination: 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 3.6mm (2.8mm, 6mm optional)
Angle of View: 78?(3.6mm), 97.3?(2.8mm), 51.2?(6mm)
Lens Mount: M12
Adjustment Range: Pan: 0 – 360?, Tilt: 0 – 75?, Rotation: 0 – 360?
Day& Night: IR cut filter with auto switch
Video Frame Rate: 720p@25fps/720p@30fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
General
Operating Conditions: -40 ?C – 60 ?C (-40 ?F – 140 ?F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC?15%
Power Consumption: Max. 4W
IR Range: Up to 20m
Dimension: ?89.5 ? 69.8 mm(?3.52? ? 2.75?)
Weight: 200g (0.44 lb)
