LPRS 2000


In stock

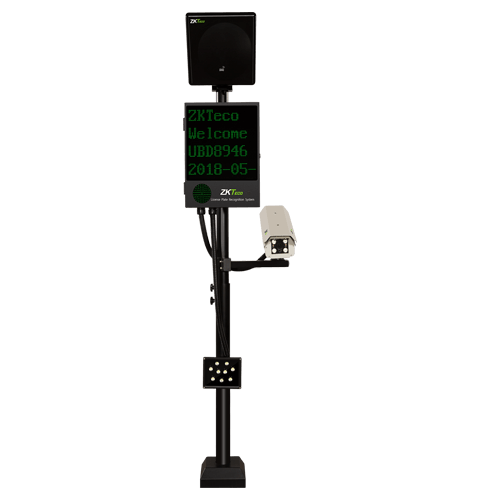

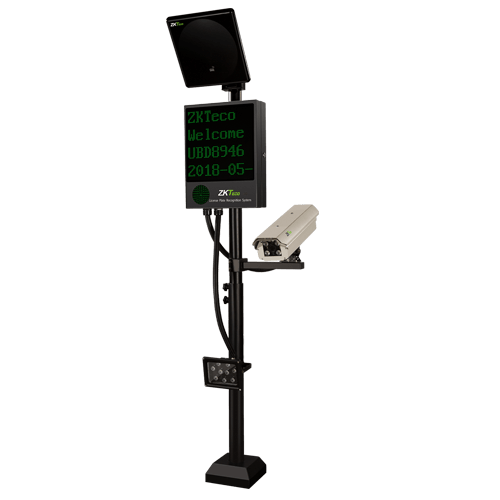

LPRS2000 is a hybrid identification vehicle management terminal that adopts multiple recognition modes for long-range RFID and license plate recognition. And compare to the traditional license plate recognition product, it combines the latest developed high-performance UHF reader to ensure that the capture rate and recognition accuracy of fixed vehicles are up to 100%.



Basic Parameters

Capture Rate 100% (For fixed vehicle)
Recognition Accuracy Day≥99.9%; Night≥99.7%
Recognition Time ≤200ms (Average)
Recognition Distance 2-10meters (Recommend distance is 3.5-4m)
Adaptable Speed Of Car ≤15km/ h
Output Information License plate number, License plate picture, Access time, Card number
Supported Countries Thailand, Argentina, Mexico, Chile, Colombia, Turkey, Saudi Arabia, South Africa, Brazil, Peru,
Mongolia, Malaysia, Indonesia, Vietnam, UAE, Oman, Egypt, EU, Korea, Pakistan.etc
Working Voltage 220V
Packaging Size 1140mm*500mm*310mm

Camera Parameters

CPU A7@600 MHz, 32 KBI-cache/ 32 KBD-cache
RAM DDR3, 256M
Image Sensor 1/2.8”CMOS
Lens 2MP, 3.2mm -11.1mm, Auto focus
Resolution 1920×1080P
Minimum Illuminance 0.1Lux (Standard)
Video Compression Standard H264
Video Compression Bit -rate 32Kbps-16Mbps
Double Code Stream Main Stream 1920*1080, 1280*720 (Optional), 1-25frames/s (25 default)
Substream 704*576, 640*480, 320*240 (Optional),1-25 frames/s (25 default)
Communication TCP/ IP (10/100Mbps)
I/O Interface Two relay, Two RS485 outputs, Audio in/out, Barrier status input, Wiegand in & out
Storage TF Card (Default 8G, Max support 32G)
Reset Reset device parameters
Working Modes Video trigger
Protection Level IP65
Working Voltage 12V DC
Working Temperature -20°C- +55°C
Dimension 580mm*242mm*220mm

Reader Parameters

UHF 6F Pro

UHF 6E Pro

Handheld Card Distance Up to 18m
Vehicle Reading Distance Up to 12m
Working Frequency 902-928MHz 865-868MHz
Chip Impinj R2000
Communication Interface Wiegand 26 (Default)/ Wiegand 34, USB
I/O Interface Supports external trigger
Working Mode Always read (Default)/ Trigger read
Interface Protocol EPC global UHF Class 1Gen 2/ ISO 18000-6C, ISO 18000-6B
Working Voltage 9~12V DC
Working Current 1.2A
Working Temperature -20 °C – 60 °C
Dimension 310mm*310mm*90mm
