ProBG2000 Series



                ProBG2000 Series LED light strip is optional for the boom. Mean Cycles Between Failure (MCBF) is up to 5 million times. The product lifespan is 10 times longer than the traditional barrier gate.
. The gate’s opening/closing speed is quick and can widely adjust from 0.9s- 10s, depends on vehicle flow and boom length.
. It can operate normally at a temperature as low as -45°C and as high as 75°C.
. Wear-resistant, no mechanical impact, and impact absorption in motion.
. Automatically detects Power-off and lifts the Boom.
. When a Vehicle hits the boom, it swings out to avoid further damage. It has an impact-resistance rubber strip.
. Supports fleet mode and open recording function. The gate can be closed after the vehicle sensor has detected a specified number of vehicles passed.
. Supports global standard voltage of 100-240V AC and 24VDC low voltage power supply.
. Low power consumption and energy-saving design. its barrier gate can save up to 500kWh per year.

Parameter

Specifications

Model ProBG2000 ProBG2100 PoBG2200
Motor Type Servo Motor

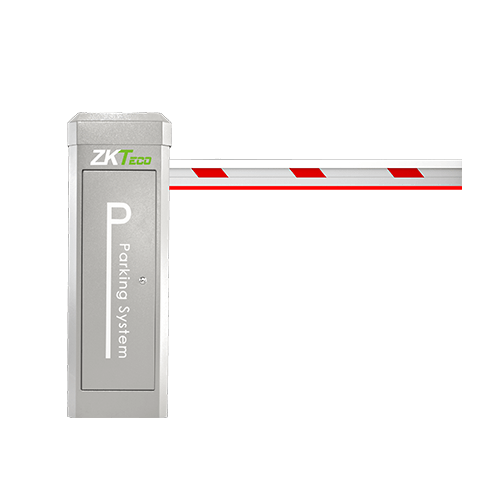

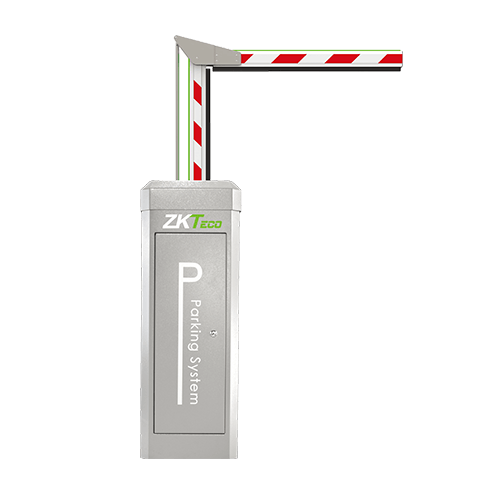

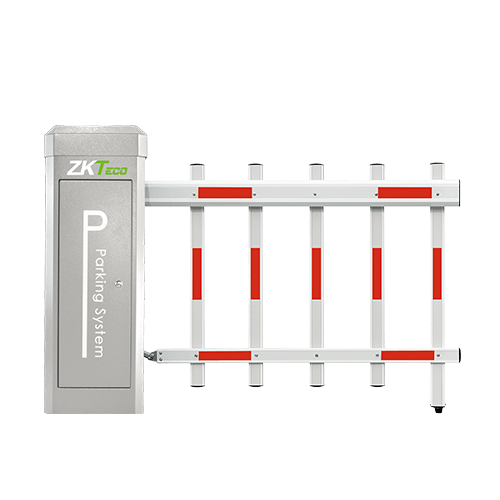

Boom-Type Straight boom 90° Folding boom Fence boom
Boom Length Supports 3m/4.5m/6m (adjustable) 3m 3m/4m
Ingress Protection Level IP54
Operating Temperature -40°C to +75°C
Power Supply 24V DC, AC 100 to 240V AC
Controller Frequency 50 to 60Hz
Power Consumption 100W
Case Material Powder coated steel
Case Dimensions 330*330*970mm
Net Weight 48kg
Model Boom Length Operating Speed Boom with LED
ProBG2030 L/R 3m 0.9s N
ProBG2045 L/R 4.5m 2.5s N
ProBG2060 L/R 6m 4.5s N
ProBG2030 L/R-LED 3m 0.9s Y
ProBG2045 L/R-LED 4.5m 2.5s Y
ProBG2060 L/R-LED 6m 4.5s Y
ProBG2130 L/R 3m 0.9s N
ProBG2130 L/R -LED 3m 0.9s Y
ProBG2230 L/R 3m 2s N
ProBG2240 L/R 4m 3s N
