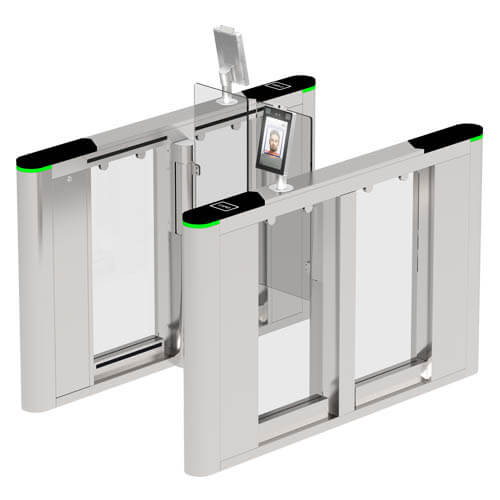

SBTL8033 with Temperature Measurement

Chat for Price

In stock

  • Body temperature detection
  • Instant facial recognition in 0.3s
  • Servomotor – faster gate opening speed
  • 10 pairs of infrared sensors for stronger tailgate detection
  • SUS304 stainless casing
  • Higher durability for longer product life cycle
Compare

SBTL8033 with Temperature Measurement

As the number of cases has been increasing and the geographical spread has been widening, the novel coronavirus outbreak has raised grave concerns about public health and personal hygiene.
It is proven that most germs are spread with our hands. Thus, a touchless entrance control solution effectively reduces the risk of the spread of infection in your premises and public areas.
Masked Face
In the time of the global public health issue, wearing surgical masks is a must-take precaution before entering
crowded areas such as offices, shopping malls, stations and so on.
Un-masked persons would potentially be seen as spreading germs in the community as droplets are one of the most dangerous and easiest ways of infection spreading.
With the help of Computer Vision technology, ZKTeco’s upgraded terminals can identify whether the
user is wearing a mask, while conducting fast and effective facial recognition.Body Temperature Detection
Most of the thermal cameras in the market are designed for industrial use. Such temperature detection may allow
up to +/-2 degrees of deviation, which is simply not precise enough for human body temperature screening
during a pandemic of diseases.
In order to solve this problem, ZKTeco combines the visible light facial recognition technology with infrared temperature detection to provide accurate and fast temperature screening during identity verification.
Quality
Casing of the product is mostly made of superior SUS304 stainless steel for its remarkably high durability.
The barrier panels are made of acrylic and have better aging resistance and impact resistance. From raw
material procurement to production, a strict quality control and inspection system is applied.

Features

  • Fast and accurate visible light facial recognition with wide angle tolerance for masked individuals
  • Body temperature detection
  • Instant facial recognition in 0.3s
  • Servomotor – faster gate opening speed
  • 10 pairs of infrared sensors for stronger tailgate detection
  • SUS304 stainless casing
  • Higher durability for longer product life cycle
  • Bi-directional operation control
  • LED passage indicator along the lane
  • Convenient installation and maintenance
  • Various optional panels
  • Emergency mode allows free access in case of power failures or emergency

Parameter

Power Requirements AC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working Temperature -28°C ~ 60°C (-18.4°F ~ 140°F)
Working Humidity 20% – 95% (Non-condensing)
Max. Speed of Throughput 40 people per minute
Lane Width (mm) 660
Dimensions (L*W*H) 1600 * 1040 * 1200 (mm)
Packing Dimensions (L*W*H) 1700 * 300 * 1130 (mm)
Net Weight (kg) 130kg
Weight with Packing (kg) 150kg
Cabinet Material SUS304 Stainless Steel
Lid Material SUS304 Stainless Steel & Acrylic
Barrier Material Acrylic
Barrier Movement Swing
Emergency Mode Supported
Face Capacity 30,000 (1:N) / 50,000 (Optional)
Compatibility 900 MHz Dual Core Customized CPU
512MB RAM / 8G Flash
8″ High Brightness (400lux) IPS Touch LCD
2MP WDR Low Light Camera
IP68 & IK04
Dimensions of Facial Recognition Device (H*L*D) 227 * 143 * 26 (mm)
Facial Recognition Distance of Masked Individuals 3m
Temperature Deviation ±0.5°C (±0.9°F)
Detection Distance 25cm – 50cm
Detection Speed >0.3s
Setection Posture Angle Tolerance +/-30 degrees

Additional information

brands

ZKTeco
