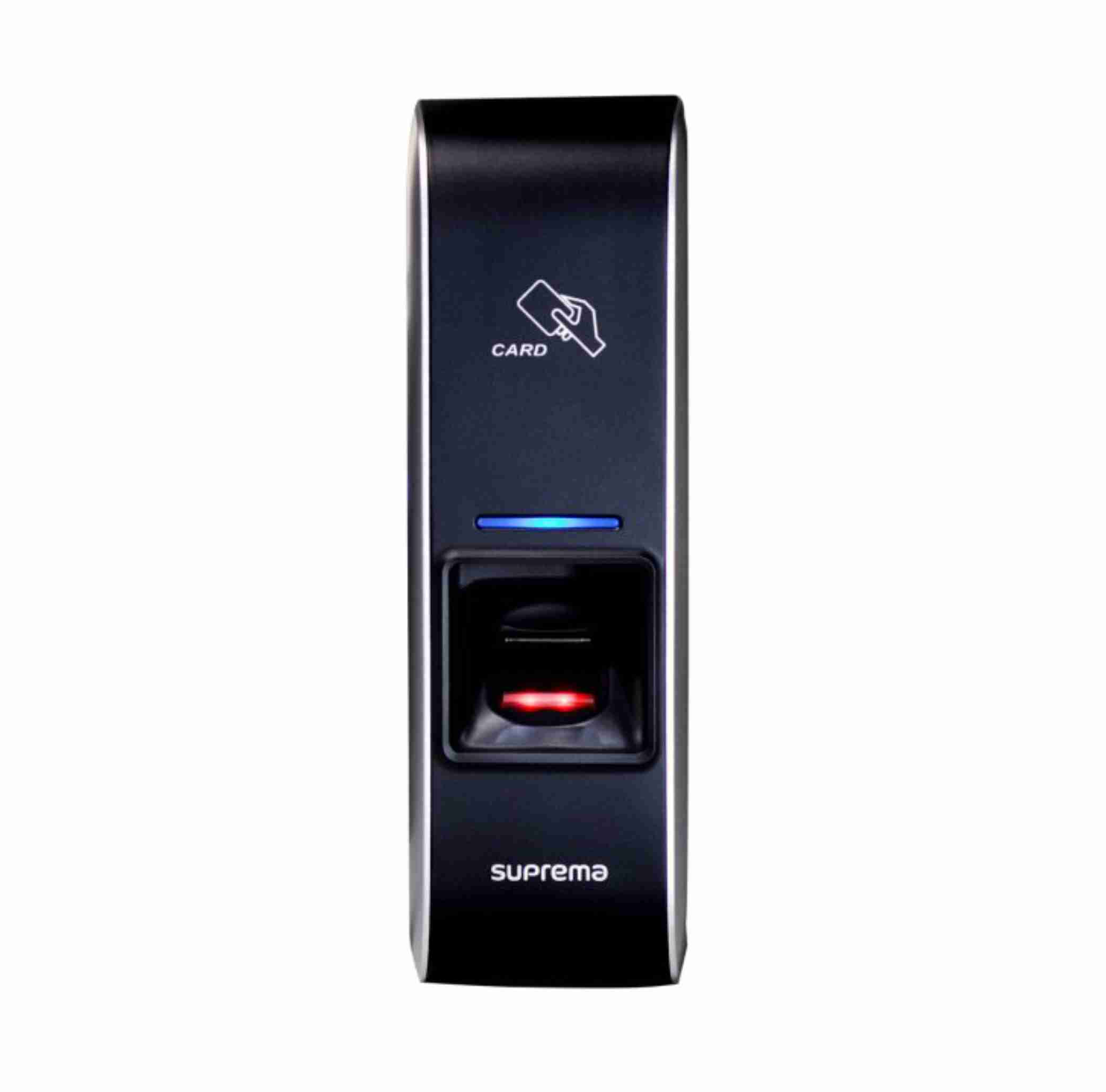

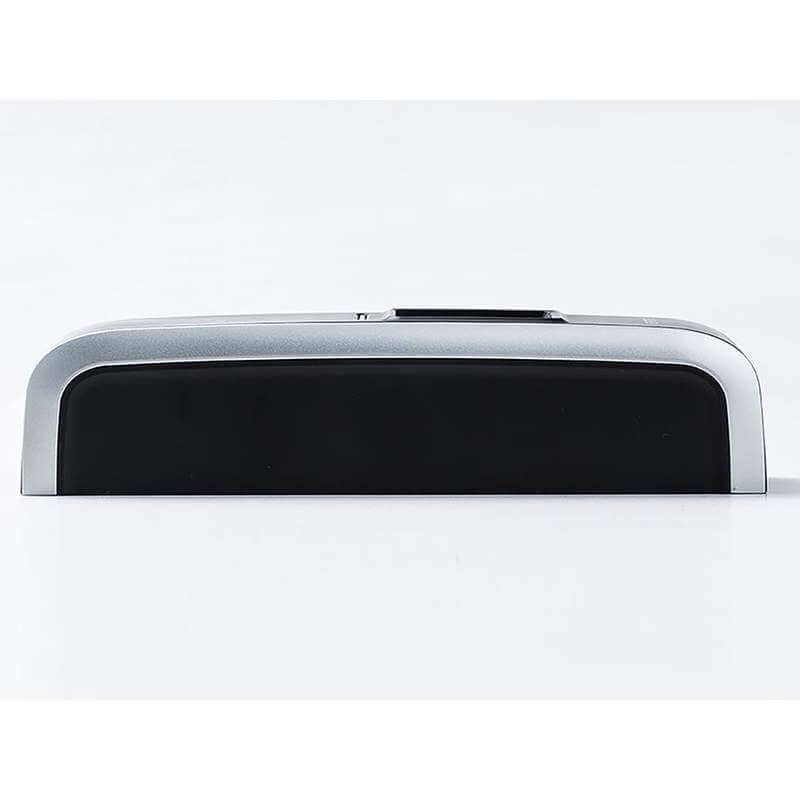

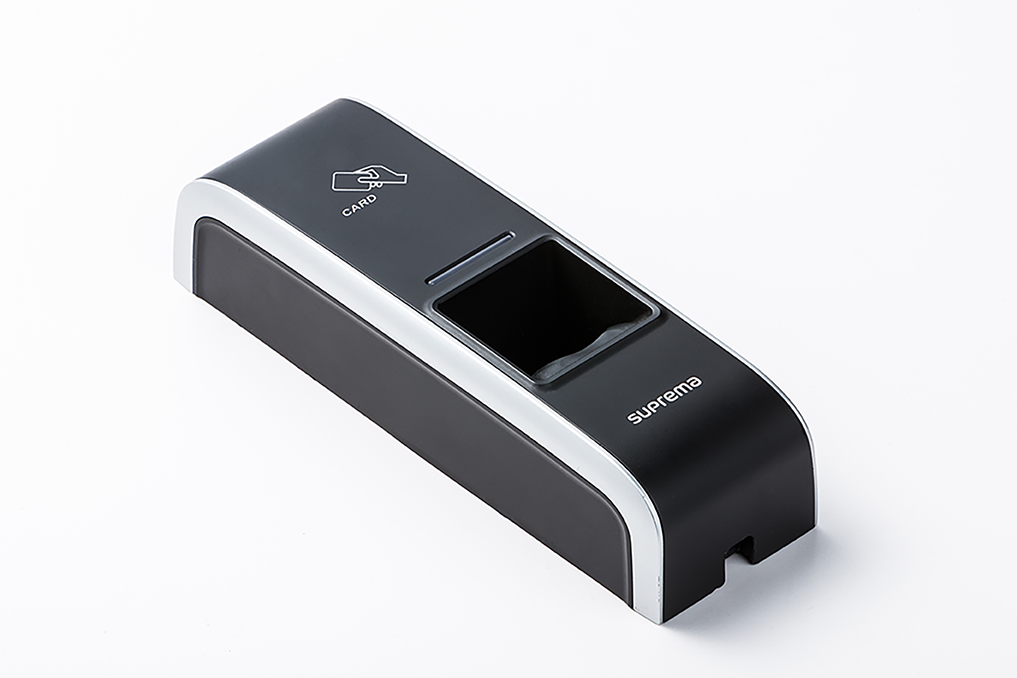

Suprema Bio Entry Plus
Suprema Bio Entry Plus is an IP based fingerprint access control device featuring easy installation and user friendly operations.
Integrated with both fingerprint and proximity card, Suprema Bio Entry Plus covers a full range of access control applications from a simple standalone door control to complex networked access control systems.
- TCP/IP Ready
- Built-in Relays
- RF Card Options
Powerful 400MHz DSP
Powered by 400MHz DSP, the Suprema Bio Entry Plus delivers fast matching speed, rapid response and exceptionally low error rate.
This powerful processor is capable of handling fast and accurate fingerprint matching process, and ensures uninterrupted device operation.
Intelligence at Doors
With powerful internal CPU and comprehensive communication interfaces, Suprema BioEntry Plus provides both reader and controller functionalities at the door.
In addition, it can also control door locks with its built-in door relay or through external relay unit.
This concept not only reduces your cost for the entire system by removing costly access control panels, but also improves system stability by eliminating single point of failure that affect whole system.
Versatile Interfaces -extra flexibility
Suprema BioEntry Plus allows flexible system design and cost advantage with comprehensive communication interfaces and relays such as TCP/IP, RS485 and Wiegand.
In addition, it provides multiple in/out relays to offer extra flexibility. For further expansion, optional external relay unit is also available.
IP-to-the-door Concept : Flexible & Cost-saving Solution
Featuring IP-based system topology, Suprema Bio Entry Plus’s IP access control system offers extra flexibility in designing your security system while reducing cost on installation & maintenance.
Compare to conventional access control system, IP access control provides lower cost per door with less wiring and utilization of existing network infrastructure.
The concept also simplifies installation of systems with multiple sites since it only requires basic internet link to remote locations.
At the core of every Suprema access control device, the world’s most powerful fingerprint algorithm assures unrivaled speed and accuracy. Recognized by FVC¹ and NIST MINEX Test², Suprema Algorithm has been proven to be one of the most sophisticated technology in biometrics industry.
|Memory||4MB flash + 8MB RAM|
|Fingerprint Sensor||500 dpi optical sensor|
|Matching speed (1:N)||1:2,000 <1 sec|
|Fingerprint capacity||10,000 templates (5,000 users)|
|Log Capacity||50,000 events|
|RF Card||Proximity (EM), HID Prox, Mifare, iClass, FeliCa ® iDM, CEPAS|
|Operation modes||Fingerprint, RF card, RF card + fingerprint|
|Network interface||TCP/ IP, RS485|
|Wiegand output||configurable up tp 64 bits|
|TTL I/O||2 inputs for exit switch and door sensor|
|Internal relay||deadbolt, EM lock, door strike, automatic door|
|Sound and interface||multi-color LED and multi-tone|
|Operating Temp.||– 20’C ~ 50’C (-5’F ~ 122’F)|
|Size||50 x 160 x 37mm (W x H x D)|
