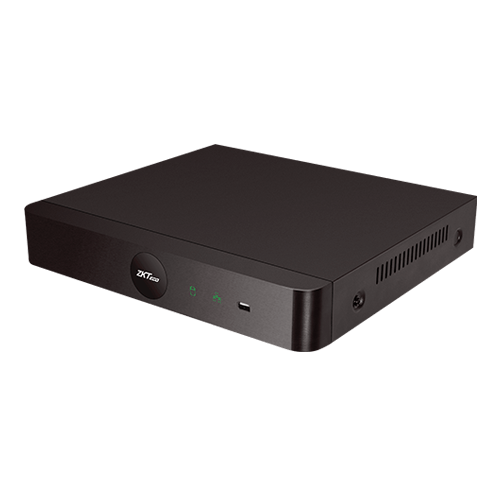

Z8304XE-S

Chat for Price

In stock

Compare
SKU: Z8304XE-S Categories: , , ,

ZKTeco Z8000XE-S series DVR could deliver up to excellent 1080P Lite resolution excellent image over advanced H.264+ compression.

It’s the ideal consideration for the balance of quality, performance and budget.

The friendly GUI provides intuitive shortcut operations, remote control and management, flexible storage, smart search and playback.

It’s widely used for the government, banking sectors, manufacturers, educational or commercial projects.

Powered by the strong interoperability and Onvif Profile S, it’s compatible with a variety of 3rd party crossing platform VMS.



Parameter

Model Z8304XE-S
System
Processor Multi-core Embedded Processor
Operation System Embedded Linux
I/O port and Storage
Network Interface 1 RJ-45 port (10/100Mbps)
USB 3*USB 2.0
HDMI 1*1080P HDMI
VGA 1*VGA
Alarm Input N/A
Alarm Output N/A
RS-485 N/A
HDD 1 SATA, up to 8TB capacity for each HDD
e-SATA N/A
Playback and Backup
Playback Channel 4
Search Mode Time/Date, MD and Exact Search
Playback Function Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next Camera, Previous Camera, Full Screen, Shue, Backup Selection, Digital Zoom
Backup Mode USB device/Network
Network
Network Protocol HTTPs, HTTP, TCP/IP, IPv4, UPnP, Onvif 2.6, RTSP, RTCP, UDP, SMTP, SNMP, Multicast, IGMP, NTP, DHCP, DNS, DDNS, FTP, P2P
Max. Online User 5
Mobile App Antarview Pro (iOS & Android)
Interoperability Onvif Profile S, SDK
Audio and Video
Audio Compression G.711a
Audio Bit Rate 64Kbps
Video Input 4ch BNC interface(1.0Vp-p, 75 Ω)
AHD Input  1080P, 720P
TVI Input 1080P 720P
CVI Input 1080P, 720P
IP Camera Input Up to 4ch 2MP
Hybrid Mode 2ch(AHD/TVI/CVI/CVBS)+2ch(IP)
Two-way Talk 1-Channel Input, 1-Channel Output, RCA
Recording
Video Compression H.264/H.264+
Record Resolution 4ch 1080P Lite@25fps
Frame Rate 1fps-25fps
Incoming Bandwidth 32Mbps
Bitrate 11Kbps-2291Kbps
Record Mode Timing and alarm record, Timing Record, Alarm Record
Power
Power supply DC 12V2A
Consumption ≤10W without HDD
General
Working Temperature 0°C~+55°C
Working Humidity 10~90%
Dimensions 233mm254mm42mm
Net Weight 0.91KG
