ZK9500

SKU: ZK9500 Categories: , ,
  • Description
  • Reviews (0)

Description

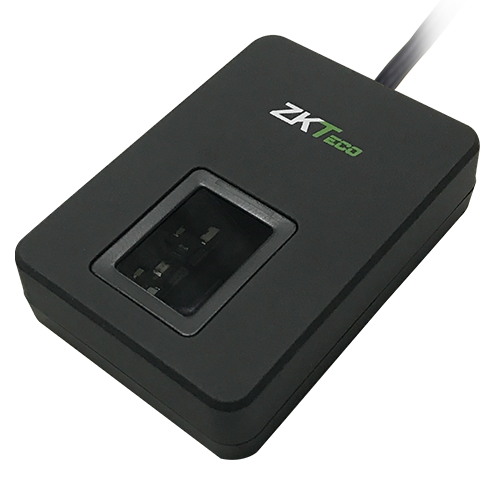

K9500, a latest optical fingerprint scanner, is developed by ZKTeco. It supports fingerprint detection and captures fingerprint image fast, with high resolution. The product is tiny in size and easy to perform fingerprint registration on the desktop. Low power consumption, it can be applies to Android tablet and mobile phone. We provide SDKs for customers to develop their own applications.



Features

ZK9500Available SDK for development

ZK9500High Speed USB 2.0

ZK9500Quick recognition of dry, wet and rough fingerprint



Parameter

Model Name ZK9500
Scanner Type Optical
CPU 280MHz DSP
Flash 32 MB
SoC RTOS
Image Quality 2-megapixel CMOS
Encrypted Fingerprint Data Yes
Water Splash Proof Yes
Power Consumption 5V:200mA scanning; 5V:60mA idle(waiting for finger)
LED White
Product Certifications FCC, CE, RoHS
Power Voltage 5V
Power Current 200mA
Communication USB 2.0/USB1.1
Interface Socket USB Type A
Image Resolution 500dpi
Effective Collecting Area 15.24 * 20.32 mm
Collecting Area 16.5 * 23 (mm)
Image Size 300 * 400 pixels
Dimensions (L*W*H) 75.5 * 53.2 * 19 mm
Image Formats RAW, BMP, JPG
Algorithm ZKFinger V10.0
Grayscale 256
Operating Environment -20 °C ~ +50 °C; 90% r.h
