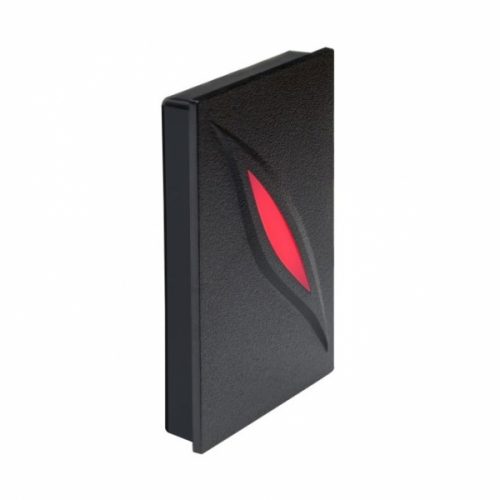

ZKTECO KR SERIES – ACCESS CARD READERS

$13.57

In stock

  • Easy to install
  • 125KHz Proximity/13.56MHz Mifare Card Reader
  • Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
  • 26/34bit Wiegand (default)
  • Easy to install on Metal Door Frame or Mullion
  • External LED Control
  • External Buzzer Control
  • Indoor / Outdoor Operation
  • Solid Epoxy Injection
  • Waterproof IP65
  • Reverse Polarity Protection
  • Elegant and robust design
Compare

The KR Series is the main accessories line of external access card readers for all our access control system.

With an elegant and robust design, they are easy to connect and install, and offer the possibility to control one door from both sides. The LED lights indicate allowed or denied access. This access card readers has a range of up to 10cm in the E series case and up to 5cm in the M series case. The fact that this series is waterproof, and the operating temperatures can range from -20º to +65º, it is the ideal solution for outdoor  access control system. Also they can be connected with our Inbio controllers.

Model KR101E/M
Read Range KR101E Up to 10 CM / KR101M Up to 5 CM
Reading time ( Card ) s 300 ms
Power DC 6-14V / Max.70mA
Input Port 2ea (External LED Control, External Buzzer Control)
Output Card Format 26bit Wiegand (E) 34bit Wiegand (M)
LED indicator 2 Color LED Indicators (Red and Green)
Beeper yes
Operating temperature -20° to +65°C
Operating Humidity 10% to 90% (relative humidity non-considered)
Color Black
Material ABS+PC with texture
Dimension: (WxHxT) mm 77.5×42.8×16.5
Weight 50g
Index of Protection IP65
