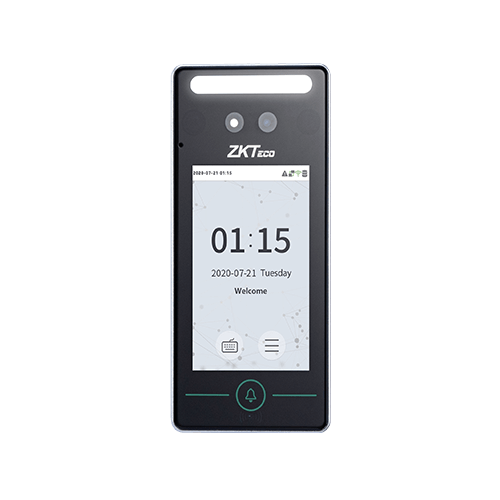

ZKTeco SpeedFace V4L


In stock

Linux-based hybrid biometric Time & Attendance and Access Control with Visible Light facial recognition and palm recognition


  • Visible light facial recognition
  • Anti-spoofing algorithm against print attack (laser, color and B / W photos), video attack and 3D mask attack
  • Multiple verification methods: Face / Palm / Card / Password
  • Available card modules: 125 kHz ID card (EM) / 13.56 MHz IC card (MF)
  • Light supplement with adjustable brightness
  • The capacity of 800 facial templates, 800 palm templates

         ZKTeco SpeedFace V4L has a recognition distance that has been extended to 2 meters, which significantly improves the maximum speed of traffic. While most algorithms only support +/- 15 ° of detectable face angle, the SpeedFace-V4L doubles the detection angle in terms of head rotation and tilt to +/- 30 °.

Non-contact palm authentication method with a novel hand tracking techniques that allow an angle tolerance of up to +/- 60 ° on the axis of rotation and a recognition distance of 50 cm

User verification takes less than 1 second, streamlining the login process. Communication between the MB360 and the PC is via TCP / IP or USB interface for manual data transfer. Its elegant design adapts perfectly to any environment.


Display 4” touch screen
Face Capacity 800
Palm Capacity 800
Card Capacity 1000
Transactions 150000
Operation System Linux
Standard Functions ID Card, ADMS, T9 Input, DST, Camera, 9-digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Tamper  Switch Alarm, Multiple Verification Methods, Palm Recognition, WiFi
Hardware 900MHz Dual-Core CPU; 512MB RAM / 512MB Flash; 2MP Binocular Camera; Adjustable LED Supplement Lighting
Communication TCP/IP, USB Host, WiFi, Wiegand Input/Output, RS485
Access Control Interface 3rd-Party Electric Lock, Door Sensor, Exit Button, Alarm Output, Auxiliary Input
Optional Function 13.56MHz IC Card, SRB Function, Cable Box
Facial Recognition Speed ≤1s
Biometrics Algorithms ZKFace V5.8 & ZKPalm V12.0
Power Supply 12V 3A
Working Humidity 10% ~ 90%
Working Temperature 0°C ~ 45°C (32°F ~ 113°F)
Dimensions (W*H*D) 72.94 * 157.94 * 23 (mm)
Net Weight 260g
Gross Weight 850g
Supported Software ZKBioAccess IVS
