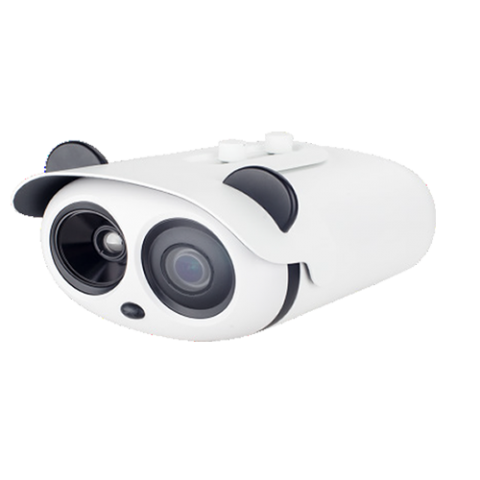

ZKTECO ZN-T1 THERMAL CAMERA

  • Description
  • Reviews (0)

Description

ZN-T5/W

N-T5/W: ZKTeco’s Body Temperature Measurement Network Camera for advanced Video Surveillance

ZN-T5/W is a Body Temperature Measurement Network Camera integrated with thermal imaging and temperature measurement, visible fusion, core image intelligent analysis, etc.

Real-time video surveillance with body temperature measurement incorporated; synchronizes measurements automatically, with response time within 30 milliseconds when people pass through the detection area.

ZN-T5/W works together with ZN-TH01.



FUNCTIONS

  • On-board temp-detection algorithm
  • One IP address two channels
  • Effective pixels 400×300
  • Sensitivity ≤40mK
  • Thermal: 8mm Fixed lens, Visible: 2.7~12mm motorized lens
  • Accuracy ±0.3°C
  • Body temperature measurement up to 30 Targets
  • Response Time ≤30ms
  • 17 color control

SPECIFICATION

Thermal Camera
Detector Type Uncooled IRFPA Microbolometer
Effective Pixels 400(H) ×300(V)
Pixel Size 17um
Thermal Sensitivity (NETD) ≤40mK @F1.0, 300K
Spectral Range 8~14um
Image Setting Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI
Color Palettes Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes
Thermal Lens
Lens Type Fixed
Focus Control Manual Focus
Focal Length 8mm
F No. F1.0
Angle of View H: 46°, V: 35°
Visible Camera
Image Sensor 1/2.8″ Sony CMOS
Effective Resolution 1920(H)×1080(V)
Shutter Speed 1/5 ~ 1/20,000s
Wide Dynamic Range True WDR 120dB
Min. Illumination Color: 0.1Lux @(F1.2, AGC ON) B/W: 0.01Lux @(F1.2, AGC ON)
S/N Ratio More than 55dB
Focal Length 2.7 ~ 12mm
Max Aperture F1.6~ F2.9
Angle of View 105°~ 32°
Focus Control Motorized
Video and Audio
Compression H.265, H.264, MJPEG
Frame Rate Main Stream: Visible: 1920×1080/1280×720 @25/30fps Thermal: D1 @25/30fps Sub Stream: Visible: D1/VGA/640×360/CIF/QVGA @25/30fps Thermal: CIF @25/30fps
Bit Rate Control CBR/VBR
Bit Rate Main Stream: Thermal: 100Kbps~6Mbps Visible: 100Kbps~12Mbps Sub Stream: Thermal: 10Kbps~1.5Mbps Visible: 10Kbps~6Mbps
Region of Interest Off / On (8 Zone, Rectangle)
Digital Zoom 16x
Mirror Support
Defog Support
Motion Detection Support
Privacy Masking Off / On (4 Area, Rectangle)
DVE Image Enhance Support
Audio Compression G.711, RAW_PCM
Intelligence
Intelligent Functions Motion detection, Disk alarm, I/O alarm, Temperature alarm
IVS Smart Body Detection, Perimeter ,Single Virtual Fences ,Double Virtual Fences ,Object Left ,Object Removed
Temperature Detection
Detection Mode Body temperature monitoring
Detection Preset Max 30 goals
Temperature Alarm Over temperature alarm
Accuracy ± 0.3 ℃ (Emission rate, distance, ambient temperature, etc.) with blackbody Detection Distance: 3~5m (4m recommended)、Working Environment: Avoid the interference of wind, sunshine, high temperature and reflective objects, indoor is recommended
Response Time ≤30ms
Theory of temperature measurement range -20 °C ~ 60 °C (-4°F ~ 140°F)
Network
Ethernet RJ-45 (10/100Base-T)
Protocols: IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP ,802.1x
Interoperability ONVIF, CGI, SDK
Streaming Method Unicast
Max. User Access 10 Users
Edge Storage Local PC for instant recording Micro SD card 128GB
Web Viewer <IE11, Chrome, Firefox
Web Language English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian
Interface
Ethernet
Audio Interface 1ch Audio In,1ch Audio Out
Alarm 2ch Alarm In,2ch Alarm Out
RS485 Support
BNC Output N/A
Reset Button Support (Built-in)
General
Power Supply DC12V/POE (IEEE 802.3af)
Power Consumption Max 10W
Operating Temperature -30°C~60°C(-22°F~140°F)
Storage Conditions 0~ 90% RH
Certifications CE /FCC
Ingress Protection IP66
Casing Metal
Dimensions 212×182×136mm
Net Weight 2.1Kg
