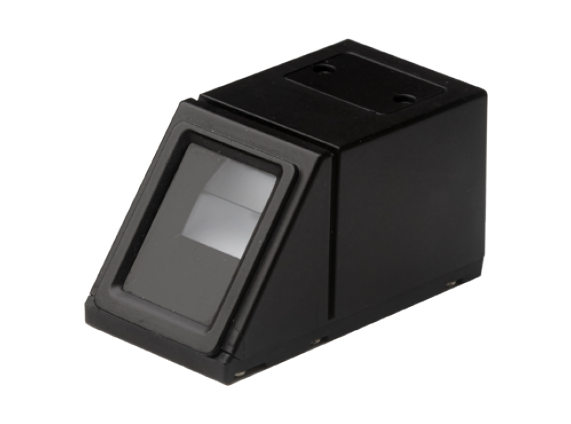

A200 Fingerprint Module

Chat for Price

In stock

  • International Standard
  • High Image Quality
  • Strong Adaption
  • Cloud Platform
  • OS Support
  • SDK
SKU: A200 Categories: , , ,

With proven fingerprint capture technology, the ARATEK A200 Fingerprint Module is compliant with international standard including ISO and ANSI support. It is applicable for authentication in different industries such as Time & Attendance finance, health care, hospitality etc.


  • International Standard
    ISO19794-2, ISO19794-4, ANSI 378, ANSI 381 and WSQ supported
  • High Image Quality
    Optical fingerprint technology with superior image quality
  • Strong Adaption
    Good adaption for dry, moist and rough fingerprints
  • Correction and Authentication
    Support auto correction and 360 degree rotation authentication
  • Cloud Platform
    Seamlessly join in Aratek TrustLinkTM biometrics authentication platform
  • OS Support
    Windows2000, XP, Vista, Windows 7 / 8 /10, Android and other embedded systems
  • SDK
    Comprehensive software development kit is available for development and integration


Physical Parameter
Dimension 25*23*47mm (L*W*H)
Performance Parameter
Capture Mode Capacitive Touch
Platen Size 14.3*19.5 mm
Sensing Area 13.0*18.0 mm
Fingerprint Image Size 256*288 pixels
Image Resolution 500 dpi
Gray level 256 level
Communication Mode
Communication Interface USB 1.1 / 2.0
Operation Environment
Work Voltage 5.0 V (USB power supply)
Work Current 50 – 120mA
Temperature  0°C~55°C
Humidity 20~90%R.H
ESD Contact: ± 6KV Air: ± 8KV
Supported OS
Windows  XP / 7 / 8 / 10, Android, Linux


  • PC/Network Security
  • Hospitality
  • Finance and Banking
  • Telecommunication
  • Healthcare
  • Law Enforcement
