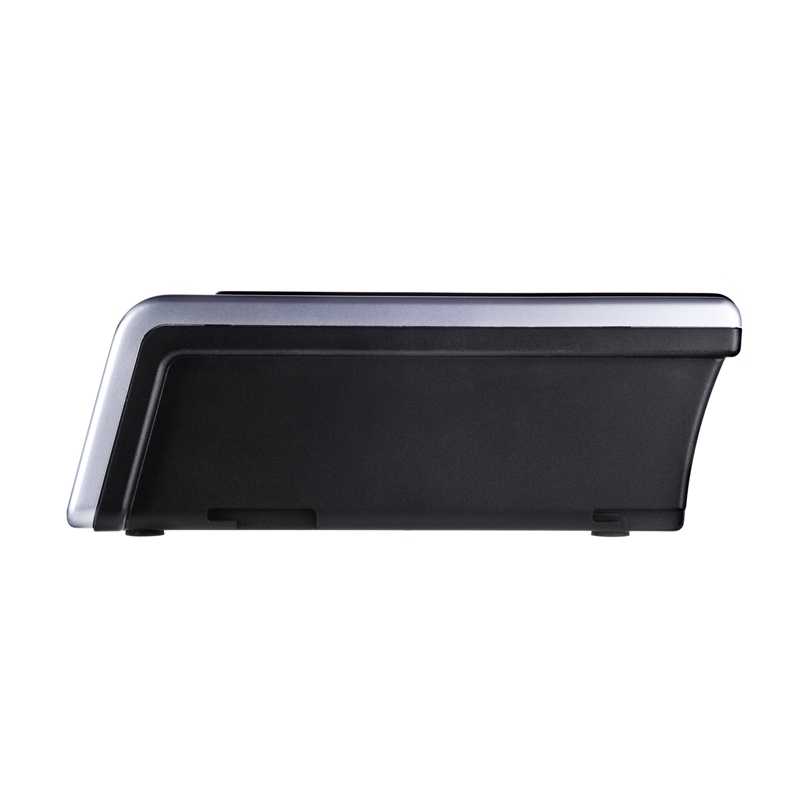

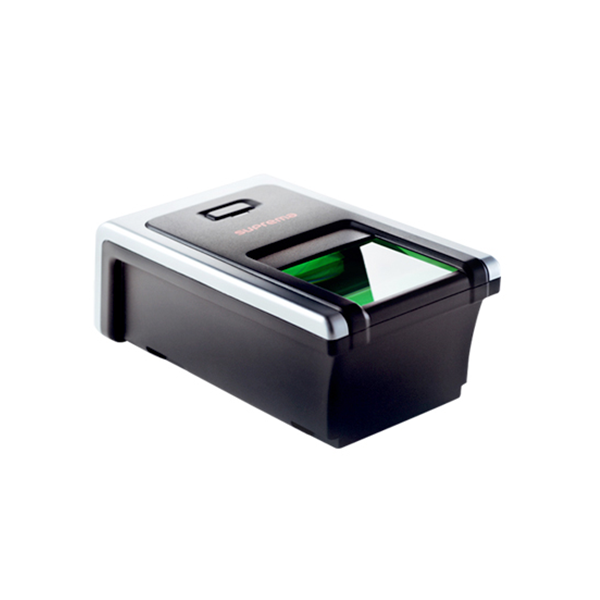

Suprema RealScan-D is an optical USB 2.0 fingerprint scanner that is able to capture 2 flat fingerprints simultaneously or 1 rolled fingerprint. The scanner is certified by FBI for civil ID and AFIS applications. Scanners image quality complies with FBI’s IAFIS Appendix F specification.
Scanner’s manufacturer specifies that the scanner provides high quality image capturing for wet and dry fingers.
Support modules for this scanner are included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK, VeriFinger 10.0 SDK and Free Fingerprint Verification SDK. Note that FFV SDK will allow to capture only single fingerprints using this scanner, as it does not include fingerprint segmentation components.
|Supported OS (*)||Microsoft Windows (32-bit and 64-bit);
Linux (32-bit and 64-bit)
|Image capture area (Platen size)||48 x 48 mm (1.9″ x 1.9″)|
|Fingerprint image size||900 x 900 pixels|
|Device size||84 x 171 x 63 mm (3.3″ x 6.7″ x 2.5″)|
|Device weight||540 grams (1.2 lbs)|
|Operating temperature||2?C ~ 49?C|
|Operating humidity||10% – 90% (non-condencing)|
* These operating systems are supported by Neurotechnology
