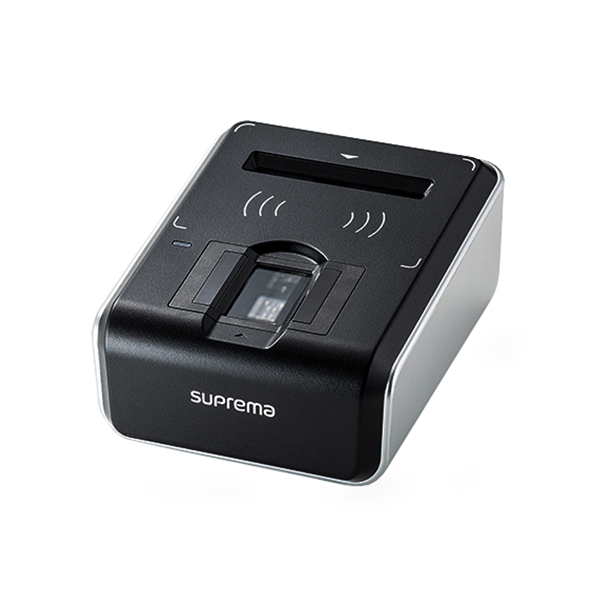

BioMini Combo

Chat for Price

In stock

PC/Network Security
? Smartcard Application
? Time and Attendance System

Compare
SKU: Biomini Combo Categories: , , ,

BioMini Combo supports contact and contactless smartcards with optional SAM slot. Combined with fingerprint sensor, the scanner
provides capability for two factor authentication for versatile security solution applications.

Specifications

Main Sensor Type Optical
Resolution / Gray Scale 500 ppi / 256 levels
Platen Size 18.0 x 25.4 mm
Sensing Area 16.2 x 24.3 mm
Image Size 320 x 480 pixels
Image Certificate FBI PIV and FBI Mobile ID FAP 20
Template Format Suprema, ISO 19794-2, ANSI 378
Image Format RAW, BMP, WSQ, ISO 19794-4
Live Fingerprint Detection Supported
IP Rating IP65(Sensor Surface)
Contact Card Support Contact Smart Card Reader ISO 7816 Class A/B/C (5V, 3.0V, 1.8V) T=0, T=1 EMV2000 contact smart card with SAM Slot(optional, max 2x SAM)
Contactless Card Support Contactless Smart Card Reader ISO/IEC 14443 A&B, Mifare, Felica NFC Forum tag types (Jewel, Mifare Ultralight, Felica, Felica lite, Mifare, DesFire)
EMV2000 Contactless Smart Card
Frequency 13.56MHz /- 7KHz
Distance transaction: Up to 10cm
Baud: 106/212/424/848 kbit/s
Interface USB 2.0 High Speed
CCID, PC/SC driver
Hardware Operating Temperature -10 ~ 50?C
Operation Humidity 10 ~ 90% non-condensing
Certification CE, FCC, KC, RoHS, UL, USB-IF, WHQL
Dimensions(W x L x H) 95.7 x 114.8 x 52.6 mm
Weight 280g
Compatibility Operating System Windows XP, Vista, 7, 8, 8.1, 10 32/64bit
Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 4.1(Jelly Bean) and Above

Additional information

brands

Reader, Suprema
