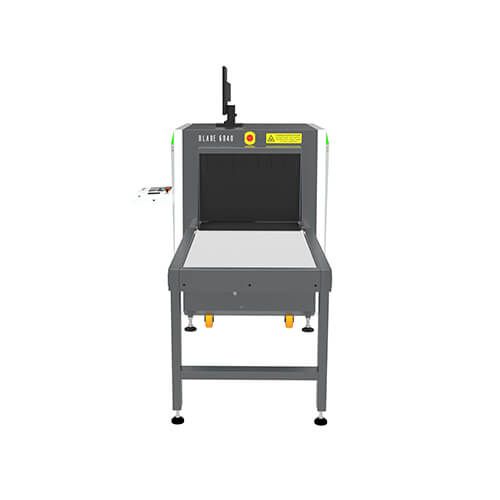

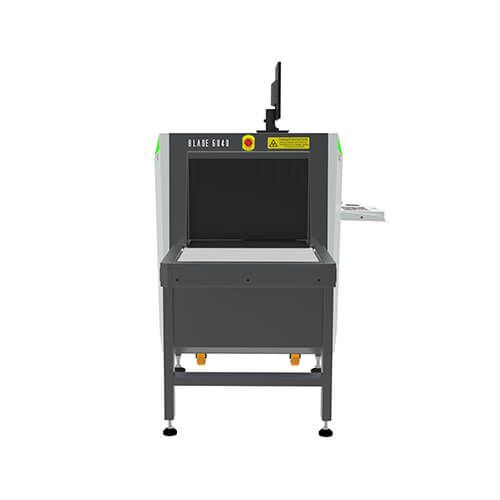

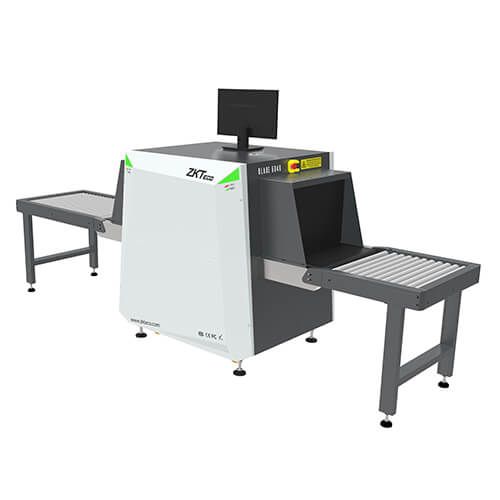

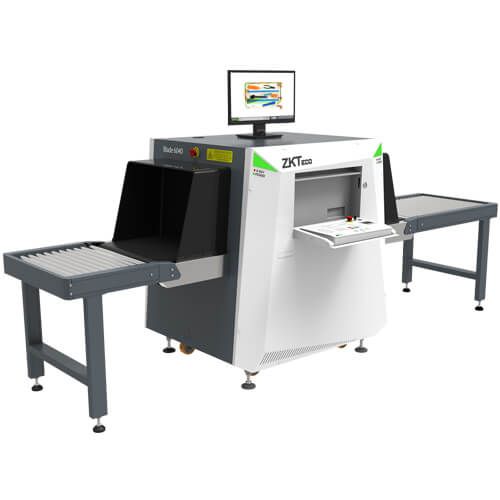

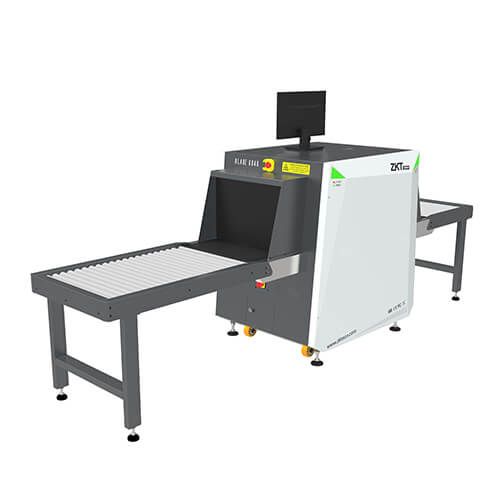

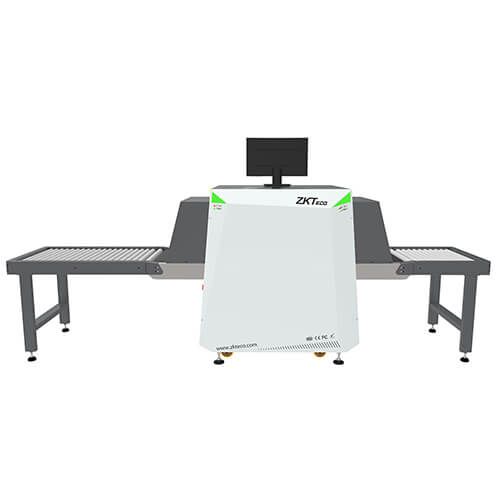

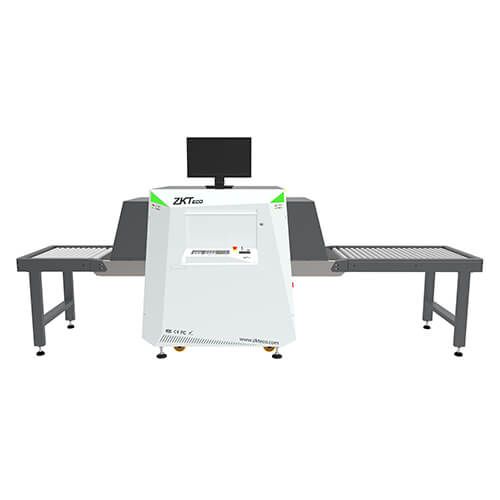

BLADE6040 X-Ray Baggage Inspection

BLADE6040 is a X-ray baggage inspection system with a tunnel size of 610*420mm which provides an effective inspection on mail, hand-held baggage, luggage and other items. It helps to identify suspicious items such as weapons, liquids, explosives, drugs, knives, fire guns, bombs, toxic substances, flammable substances, ammunition and other dangerous objects which may lead to potential safety hazard by atomic number identification.

High image quality in combination with automatic identification of suspicious objects allows the operator to quickly and effectively evaluate any luggage content.


  • Real-time Detection to Aid Operators in Identifying Suspicious
  • High Performance – Typical Penetration up to 40 mm of Steel
  • Startup with Fingerprint
  • Four Layers of Lead Curtain
  • Uninterruptible Power Supply
  • Equipped with Input & Output Rollers
  • Adjustable Conveyor Speed
  • Real Time Remote Monitoring System
  • Luggage Image and Walk Through Metal Detector Status Display on the Same Screen
  • Threat Image Projection (TIP)


  • Operator Desk
  • Video Surveillance
  • Gray Paint
  • Guard Plate of Rollers (Two layers of lead curtain)
  • Eyes on Function (Eye tracking technology to follow the users eye as they operating x-ray inspection.There will be a prompt when the operator’s eyes leave the screen.)


Technical Characteristics
Tunnel Dimensions(W*H) 610*420 mm
 Conveyor Speed  0.20 m/sec. ~0.40 m/sec
Load on Conveyer  max. 200kg(evenly distributed)
Space Definition HorizontalΦ1.0mm VerticalΦ2.0mm
 Steel Penetration  38mm guaranteed;40mm typical
 Wire Resolution  38AWG guaranteed;40AWG typical
Dual-energy Detector Yes
Number of Colors in X-ray Image 3
Dimensions(L*W*H)  3617*1040*1315 mm
Package Dimensions(L*W*H) 2100*1200*1600 mm
Package Weight 750kg
Film Safety ASA/ISO1600 standard of film safety
Single Inspection Dosage Rate  ≤1.0μGy
Operating Environment
Operating Temperature  -10°C to +45°C
Storage Temperature -20°C to +60°C
Humidity 5-95%, non condensing
Power Supply 230 VAC +/- 10% / 60/50 Hz (EU)

110 VAC +/- 10% / 60/50 Hz (US)

Power Consumption  700W
Sound Pressure <51.8dB (A)
X-ray Generator
 Tube Current 0.5-0.1 mA(adjustable)
 Anode Voltage 150-170 kV(adjustable)
Generator Cool Seal oil cooling / 100%
Computer Specification
Processor I7-7700
Monitor  21” LED color
Memory 8 GB DDR4
Hard Drive 240GB SSD+1TB HDD
Graphic Card: NVIDIA GeForce GTX 1660 Ti
USB Port 4 Ports
Software features Perfect View (PV)
Black / White (B/W)
Pseudo Colors (PS)
Inverse View (IN)
High Penetration (HP)
Real Time Image Processing
Image Zoom(64x)
Image of Previous Baggage
Programmable Function Keys
Baggage Counter
Date / Time Indicator
Threat Image Projection (TIP)
Automatic Identification of Suspicious
Cloud Remote Control
Monitor the status of walk through metal detector
