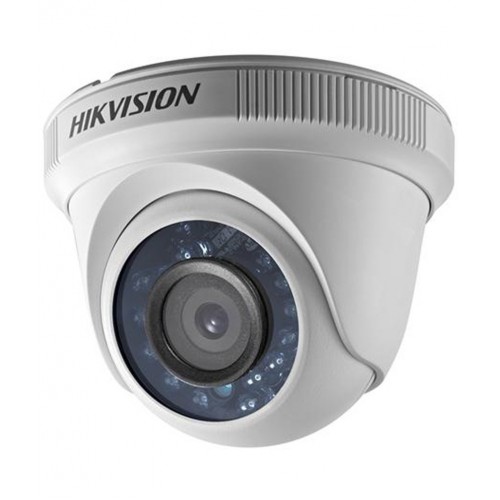

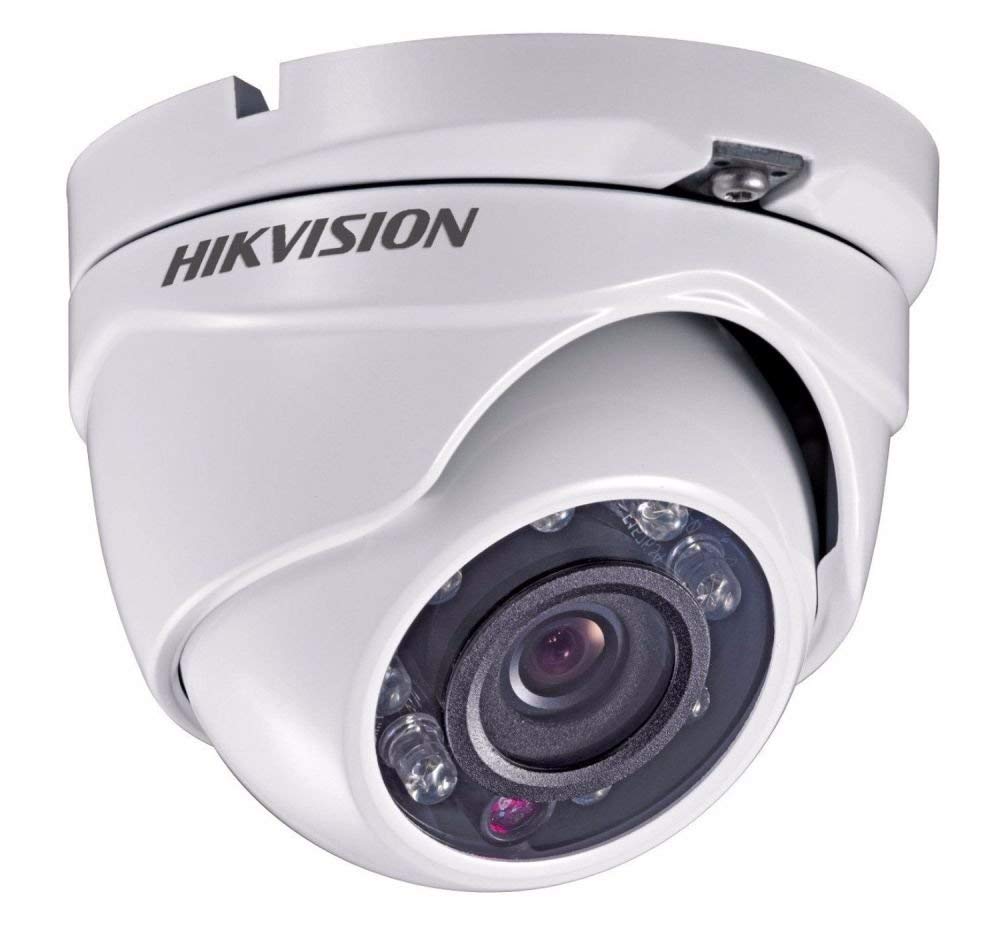

DS-2CE56C0T-IR

11,080

????????? 1.0 Megapixel high-performance CMOS

????????? Analog HD output, up to 720P resolution

????????? True Day/Night

SKU: DS-2CE56C0T-IR Categories: , , , , ,
  • Description
  • Additional information
  • Reviews (0)

Description

Camera
Image Sensor: 1MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 1296(H)x732(V)
Min. Illumination: 0.1 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 3.6mm (2.8mm, 6mm optional), Angle of View: 70.9?(3.6mm), 92?(2.8mm), 56.7?(6mm)
Lens Mount: M12
Adjustment Range: Pan: 0 – 360?, Tilt: 0 – 75?, Rotation: 0 – 360?
Day& Night: IR cut filter with auto switch
Video Frame Rate: 720p@25fps/720p@30fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
General
Operating Conditions: -40 ?C – 60 ?C (-40 ?F – 140 ?F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC?15%
Power Consumption: Max. 4W
Weather Proof: IP66
IR Range: Up to 20m
Dimension: ? 89.9 ? 70.1 mm (3.54″ ? 2.76″)
Weight: 280 g (0.62 lb.)
