SUPREMA BSA2-OHPW

728,000



  • Biometric Fingerprint / Live Finger Detection Supported
  • RF Options : BSA2-OHPW : 125KHz HID Prox
  • CPU 1.0GHz Quad Core / Memory 1GB RAM + 8GB Flash / LCD 5.0″ IPS LCD Touch / LED Indicator Multi-Color
  • WiFi 802.11 b/g / TCP/IP / RS-485 1ch Host or 1ch Slave (Selectable) / Wiegand 1ch In, 1ch Out



  • Description
  • Additional information
  • Reviews (0)

Description

Description

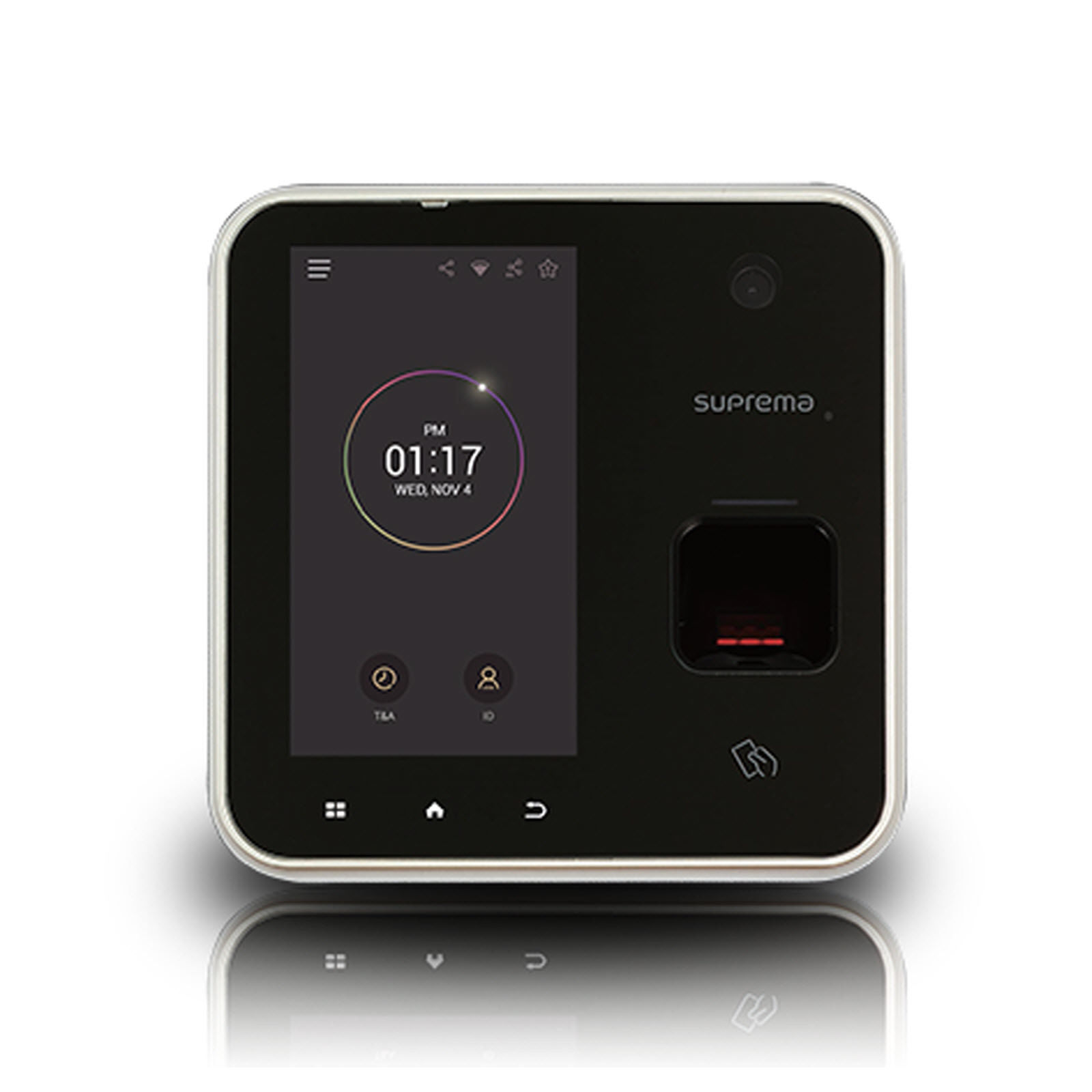

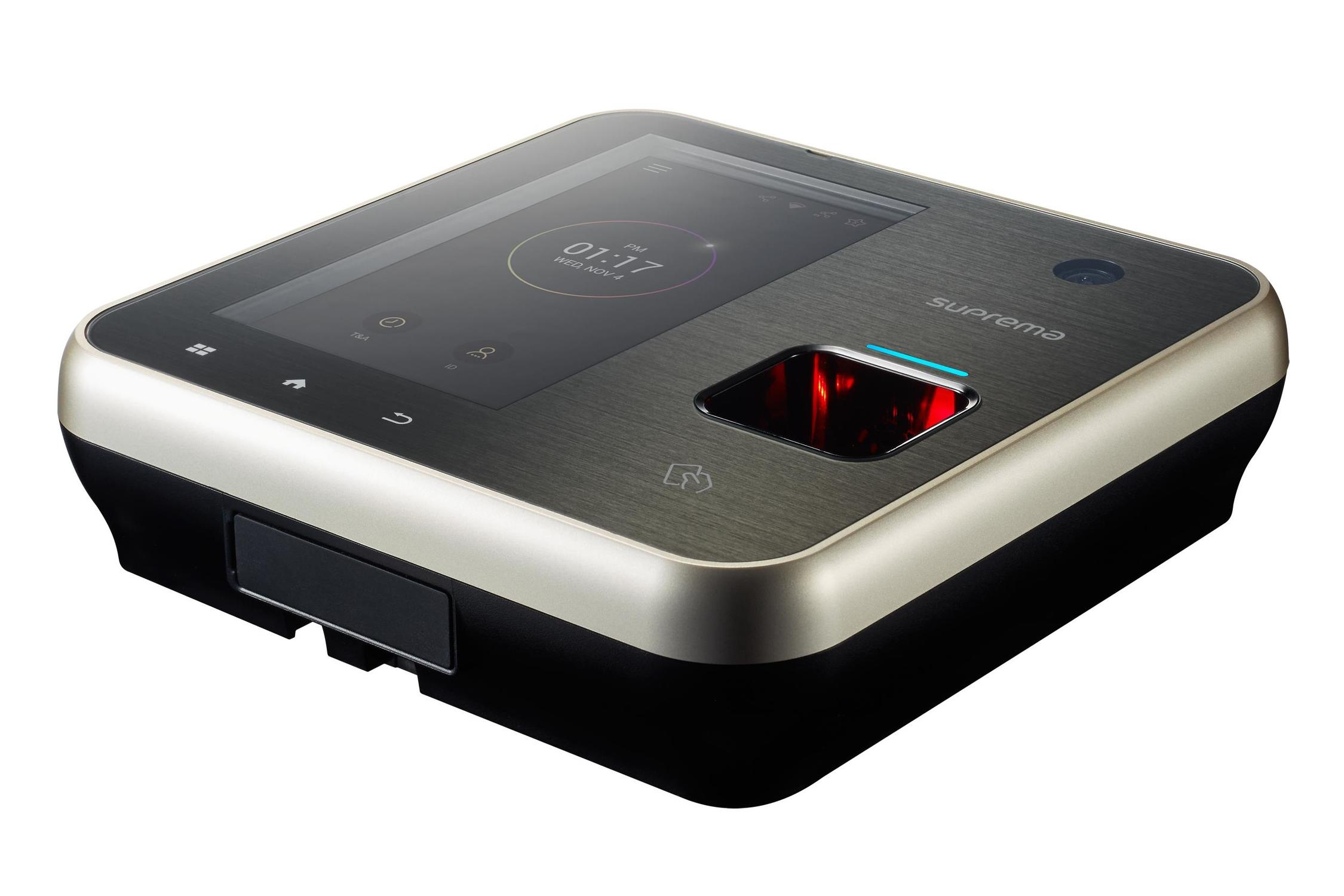

BioStation A2
Suprema BioStation A2 is the most advanced fingerprint access control and time attendance terminal featuring Suprema’s next generation biometric technology and security platform.
BioStation A2 provides class-leading performance through the World’s best matching performance, uncompromised security and accuracy along with top-notch usability.

Specification
Main
– Biometric Fingerprint
– Live Finger Detection Supported
– RF Options : BSA2-OHPW : 125KHz HID Prox
– Multi-Controller Yes

Capacity
– Max. User (1:1) 500,000
– Max. User (1:N) 100,000
– Max. Template (1:1) 1,000,000 *two templates per finger
– Max. Template (1:N) 200,000 *two templates per finger
– Max. Text Log 5,000,000
– Max. Image Log 50,000

Interface
– WiFi 802.11 b/g
– TCP/IP : Yes
– RS-485 1ch Host or 1ch Slave (Selectable)
– RS-232 : No
– Wiegand 1ch In, 1ch Out
– Input 2 Inputs
– Relay 1 Relay
– USB Host
– SD Card Slot Up to 32GB

Hardware
– CPU 1.0GHz Quad Core
– Memory 1GB RAM + 8GB Flash
– LCD 5.0″ IPS LCD Touch
– LED Indicator Multi-Color
– Sound 24bit/Voice DSP (Echo Cancellation)
– Operating Temp. -20° to 50°C
– Tamper Yes
– Power 12VDC
– PoE Yes
– Dimensions 155 x 155 x 40 (WxHxD mm)
– Certificates CE, FCC, KC, RoHS, REACH, WEE

Compatibility
– BioStar 1.x : No
– BioStar 2 : Yes
