VK2-1080XIRPTZF?FULL HD SPEED DOME

Chat for Price

In stock

  • Compact aesthetic micro dome housing
  • 3MP resolution
  • Sony Starvis Technology
  • Digital WDR
  • Lens Distortion Correction
Compare
SKU: VK2-1080XIRPTZF Categories: , ,

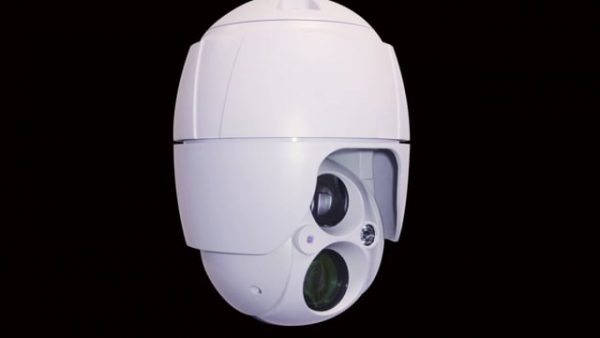

VK2-1080XIRPTZF FULL HD SPEED DOME WITH BUILT IN IR ILLUMINATION

The camera features long range zoom lens tracking IR illumination which means that, as the lens zooms in, the illumination beam is automatically narrowed. This ensures that all the available light is used to illuminate a scene, guaranteeing good quality images day or night at long range.
With four hardwired alarm inputs, plus two way audio functions, the design of VK2-1080XIRPTZ dome is ideally suited for use in alarm-activated remotely monitored CCTV systems.
A special lens coating repels rain drops so no wiper is required. Coupled with simple installation – including Smart Manager utility for hassle free set up – the VK2-1080XIRPTZF is the ideal choice for outdoor installations in applications such as industrial sites, schools and town centres.
The camera integrates with the complete range of VK2 control and recording packages as well as many third party VMS solutions. In addition, it complies with ONVIF video over IP specifications, ensuring that any software front end that is also designed to the ONVIF specification will be able to view the video.

Key Features:

  • Zoom tracking IR illumination:
    The beam angle matches the lens viewing angle to ensure illumination is maximized at all times
  • All-in-one design
    Zoom lens and illumination is all built into one unit for simple install
  • Full HD triple streaming:
    Allows different streams to be used for recording, viewing and mobile apps
  • 4 alarm inputs:
    Allow for extensive automation of operation

TECHNICAL SPECIFICATION

Model VK2-1080XIRPTZF
Image Sensor 1/2.8” SONY Exmor CMOS
Lens Optical Zoom 30x (f=4.3 ~ 129.0mm) F1.6 (wide) ~ F5.0(tele), 16x Digital Zoom
Scanning Mode Progressive Scan
Min. Illumination Colour: 0.5Lux, B/W: 0.0Lux (F1.6, 50IRE, IR ON)
AE Yes
White Balance Yes
DNR 2DNR
Day / Night operation True day Night with removable IR cut filter
WDR ATR-EX (D-WDR)
Digital Image Stabilisation Yes
BLC Yes
Built-in IR Yes up-to 100M – Zoom tracking
VIDEO
Progressive Encoding Yes
Compression H.264(BP/MP/HP), MJPEG
Resolution Supported 1920 x 1080p, 320 x 240
Max. Frame Rate 1080p @ 60ips, 1080p @ 30ips, 720p @ 30ips
Multiple Streaming Triple Stream (2x H.264 and 1x MJPEG)
INTERFACING
Audio In/Out In x 1 / Out x 1 (G.711)
Alarm In/Out 4 x In / 1 x Out
Ethernet 10/100Mbps
RS485 Yes
FEATURES
Motion Detection Yes
Event Buffering Yes (Pre & Post)
Privacy Masking Yes
PrVA (Pre-recorded Voice Alert) Yes (3 pre-recorded files)
Video Analytics YES (Tampering, Defog, Object Detection)
Cross Web Browser Yes
FTP Image Upload Yes
ONVIF Certificate Yes
Network Time Sync Yes
Zero Configuration Yes
Security Password Protection IP Filtering, HTTPS, SSL
NETWORK
Protocols IPv4/IPv6, Manual, TCP/IP, UDP, HTTP, RTP, RTSP, NTP, DHCP, SMTP, DDNS, HTTPS, RTCP, FTP, SNMP, Bonjour
Max. Connections 10
NAS Support Yes
JPEG push Yes
DDNS Yes
Remote Viewer Web Client, VK2-Client (64 Chn), Mobile Viewer (iOS, Android)
PTZ FUNCTIONS
Pan Range 360° Continuous rotation
Pan Speed 380°/sec
Max Preset speed 380°/sec
Tilt Range 0° ~ 1000 (10 degrees above horizon)
Tilt Speed Max. 300°, Preset: 380°/sec
No. of Presets 240
No. of Preset Tours 8
Privacy zones 8
MISCELLANEOUS
Weatherproof IP66
Power 28W max. Supplied with high powered PoE injector, 12VDC @ 2.3A
Power Consumption 36W (with IR)
Operating Temperature -20°C ~ + 50°C
Humidity 0 ~ 90% RH
External Dimension 370(H)mm x 158(Ø)mm
Weight 4.9Kg
Certification CE RoHS2: 2011/65/EU
