ZKBio900 Series

  • Description
  • Reviews (0)

Description

ZKBio900 Series All in One Biometric Smart POS Terminal

Features

  • Power-efficient Intel® Celeron® J1900 2.0 GHz Quad-Core processor;
  • 15” Bezel-Free True-Flat PCAP touch screen;
  • Optional Intel® Core™ i3 or i5 processor;
  • Fingerprint verification makes transaction safer;
  • Modular design with aluminium alloy material;
  • Dual hinge stand, table stand and standard VESA mount;
  • VFD and second display can be adjusted in angle;

Options

  • Magnetic Stripe
  • Card Reader
  • Barcode Scanner
  • Fanless Design
  • Thermal Printer
  • Wall Mounted
  • VFD Customer Display
  • Fingerprint Module
  • 2nd LCD Display Screen

Parameter

Model Name ZKBio910 ZKBio930 ZKBio950
System
Processor
Intel® Celeron® J1900 Quad-
Core Processor (2.0 GHz)
Intel® Core™ i3-4005U Processor(1.7GHz)
Intel® Core™ i3-4010U Processor(1.7GHz)
Intel® Core™ i5-4200U Processor
(1.6 GHz up to 2.6 GHz)
Intel® Core™ i5-4210U Processor
(1.7 GHz up to 2.7 GHz)
System Memory 4GB Standard, DDR3L 1666MHz
Storage Device 64GB SSD Standard, 1*2.5’’ HDD & 2.5’’ SSD
OS Supported Windows 7, Windows 8, Windows 10 IoT Enterprise, POS Ready 7, Linux
Audio Realtek ALC662
Display and Touch
Type 15’’ TFTLCD, LED Backlight
Resolution 1024*768
Touch Screen Projected capacitive touch screen
Customer Display LED (8C digital tube)

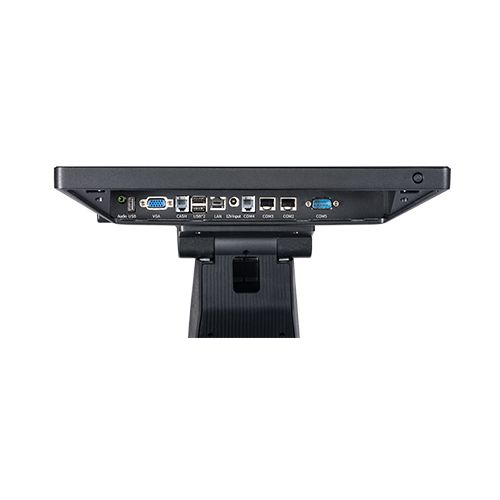

External I/O Ports
VGA 1*DB-15
USB 4*USB 2.0 & 1*USB 3.0 5*USB 2.0 & 1*USB3.0 5*USB 2.0 & 1*USB 3.0
COM 3 0 0
HDMI 0 1 1
LAN 1
Audio 1*line-out 1*line-out, 1*mic In 1*line-out, 1*mic In
Cash Drawer 1 0 0
Physical Environment
Operating Temperature 0 ~ 35 at 20% – 80% humidity
Storage Temperature 20 ~ 55 at 20% – 80% humidity
Power Supply Adaptor 12V DC 5A
Dimensions (W*H×D) 228*385*403 mm
Certification CE FCC
Material Aluminum alloys, ABS
Color Black
Options & Peripherals
2nd Display 8’’ /10’’ TFT LCD
Customer Display 20 columns * 2 lines
MSR 3 tracks
Barcode Scanner 2D barcode scanner
Fingerprint USB fingerprint module
