ZKTeco ProCapture-WP Access Control Device

Chat for Price

In stock

Modern Design & Interactive UI
Multiple Verification Modes
Outstanding Performance With Dry, Wet and Rough Fingers
Revolutionary SilkID

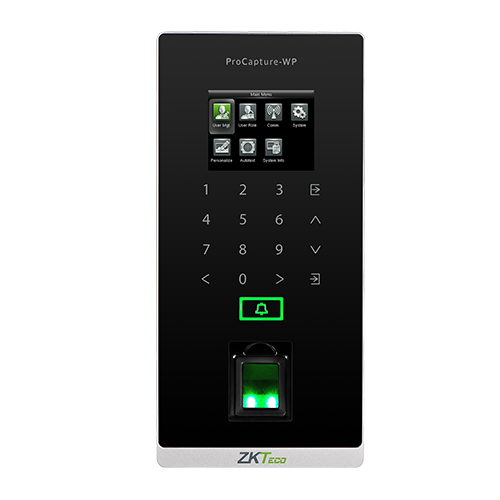

Zkteco ProCapture-WP is an access control terminal applying the most advanced BioID fingerprint sensor. Its outstanding performance provides a high identification rate towards dry, wet and rough fingers.

The fingerprint verification speed has been dramatically increased by its optimized fingerprint algorithm and the brand new ZMM220 hardware platform, equipped with a fast 1.2GHz processor.

The touch keypad delivers a smooth and easy user operation to enroll and delete users, set device and access control parameters, etc.
With its IP65 rated waterproof and dustproof structure, ZKteco ProCapture-WP offers extra durability in harsh conditions such as outdoor environments. It is specially designed for standalone applications such as house, office, shop, garage, factory, and others.


ProCapture-WPModern Design & Interactive UI
ProCapture-WPMultiple Verification Modes
ProCapture-WPOutstanding Performance With Dry, Wet and Rough Fingers
ProCapture-WPRevolutionary SilkID


Capacity Fingerprint: 20,000, Card: 10,000, Transaction: 100,000
Communication TCP/IP, RS485 (For Slave Reader), Wiegand Input / Output, Security Relay Box
Access Control Interface Lock Relay Output, Alarm Output / Auxiliary Input/ Exit Button / Door Sensor, Doorbell Output
Hardware 1.2GHz High Speed CPU, Memory 128MB RAM / 256MB Flash, BioID Fingerprint Sensor
2.4 Inches TFT-LCD Screen, 125KHz EM Reader / Mifare (Optional), Hi-Fi Voice & Indicator, Anti-dismantle Alarm, Touch Keypad
Standard Functions Access Levels / Groups / Holidays/ DST / Bell Schedule, Duress Mode, Anti-Passback, Record Query, Custom Wallpaper & Screen Saver
Special Functions Multiple Verification Modes, ZK Encrypted Card (Optional), Fingerprint Card (Optional)
Compatibility Wiegand Slave Reader, RS485 FP Slave Reader, ZKBioSecurity Software
Additional Info Working Temperature: -10 °C ~ 50 °C, Dimensions: 202.30×96.80×35.00mm, Fingerprint Algorithm ZKFinger v10.0
Fingerprint: FAR≤0.0001% FRR≤0.01%, Package Includes 12V 3A Power Supply
Power Operating Voltage 12V DC, Current Draw < 500mA
