ZKTeco Smart Temperature Measurement and Disinfection Channel

Chat for Price

In stock

  • Accelerate resumption of production
  • Mobile rapid deployment
  • Intelligent Epidemic
  • Prevention platform
  • Sterilizes the whole body within 5 seconds

T&C Apply

SKU: thermo-therapy Categories: , ,

Smart Temperature Measurement and Disinfection Channel

Introducing the new ZKTeco all-in-one smart temperature measurement and disinfection tunnel designed to prevent the spread of CoronaVirus and other infectious diseases in workplaces.

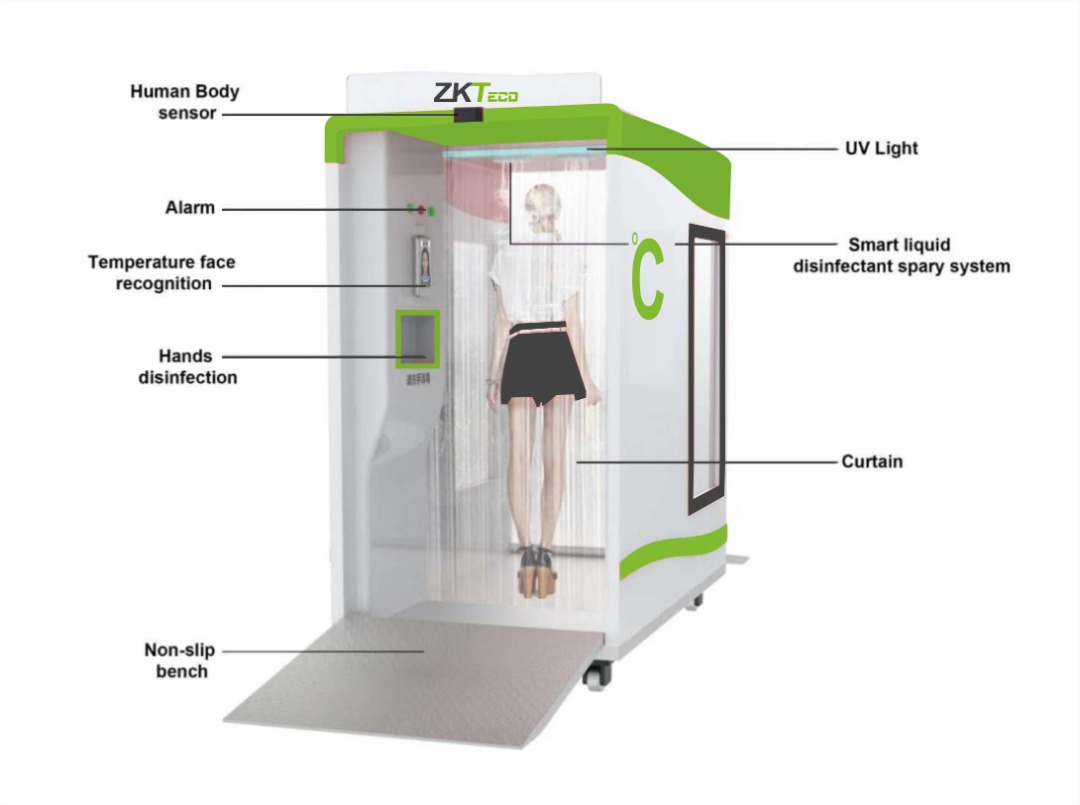

This smart disinfection tunnel

  • measures temperature with integration of antibacterial and antiviral disinfectants.
  • automatically sterilizes the whole body within 5 seconds with 2 technologies (UV light disinfection and atomization therapy.
  • raises alarm when high temperature or fever is detected to eradicate spread in workplace.

It is suitable for:

  • Government parastatals,
  • Manufacturing & Construction companies,
  • Corporate organisations,
  • Religious organisations and Schools.

Temperature Measurement and Disinfection Channel Features

  • Integration of antibacterial
  • No Contact in the whole process
  • System can be upgraded
  • Flexible assembly and disassembly
  • 5 seconds fast passing save time

Product Parameter

Type H01-01A Aerosol Disinfection Version Disinfection method Automatic induction spray
H01-02A Infrared Version The length of spray channels 116cm
H01-02A Intelligent Voice Version Fog making way Ultrasonic atomizing

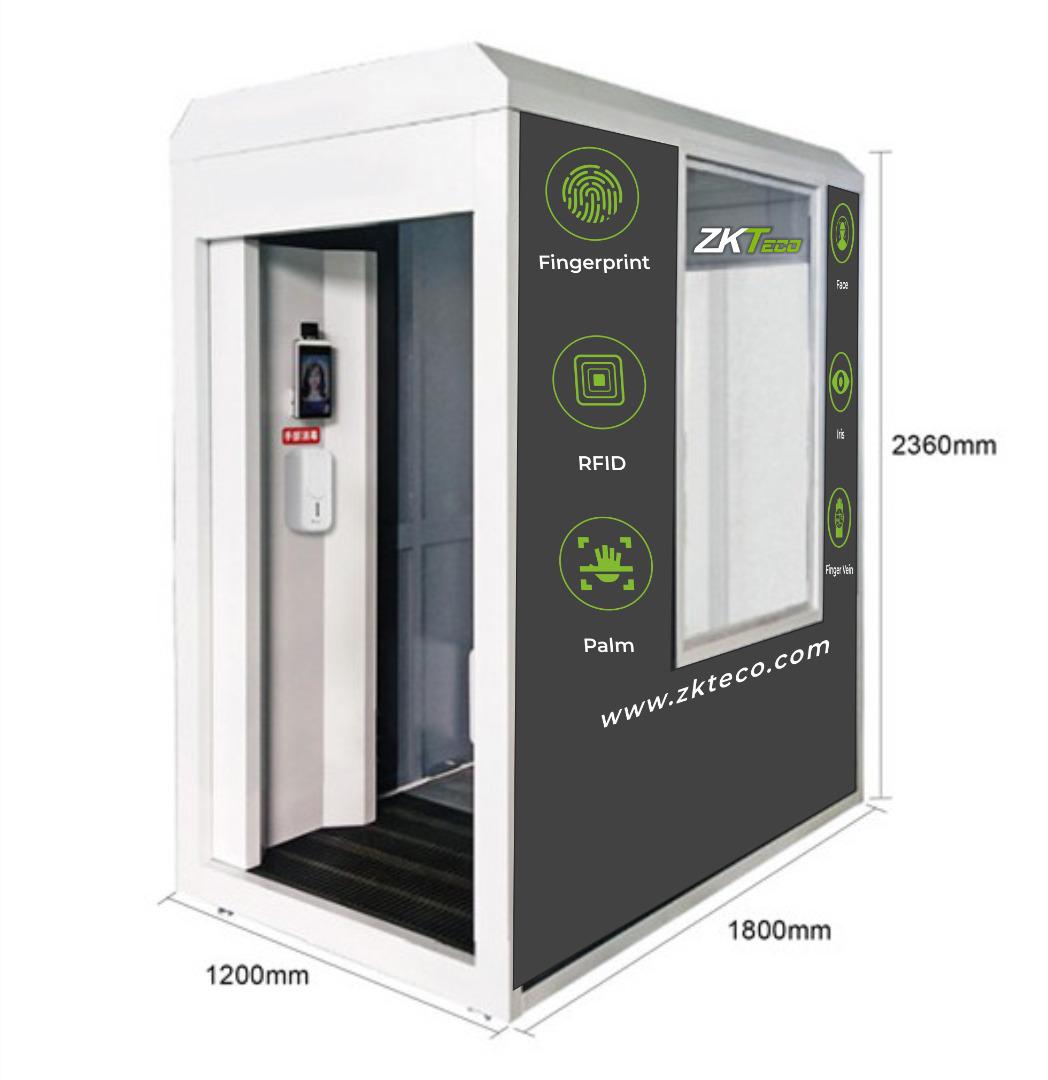

Size L180*W120*H236cm Spray control method Microwave induction start, delay stop (Delay adjustment 5-60 seconds), 4 fog outlets
Inner channel size L180*W104*H188cm Spray efficiency 3-6Kg/H
Working Voltage Ac22 0V Spray area protection method Anti-stick PVC door curtain
Rated power 900W Spray disinfection waiting time 5-15 seconds recommended (Stay according to personal needs, the device does not make mandatory control)
Working noise Less than 36db Disinfection tank capacity 20L
Working environment 0-35C (Unusable below 0 degrees, disinfectant freezes and cannot be atomized) Disinfectant type 100-400PPM diluted solution of chlorine dioxide, 200PPM diluted solution of hypochlorous acid
Rainproof function Equipment housing with rain protection (Open access doors are not rainproof) Hand disinfection type Independent area induction spray type, disposable disinfectant
Equipment material Cold rolled steel plate.
