ZKTeco ZK-178K Handheld Infrared Thermal Imager

Chat for Price

In stock

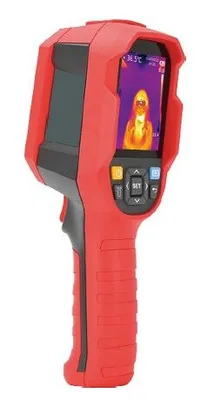

ZKTeco ZK-178K Handheld Infrared Thermal Imager With Visible Light Camera

ZKTeco ZK-178K is an Infrared Thermal Imager with visible light camera which combines surface temperature measurement and real-time thermal image. It also supports real-time image transmission function.

Traditional infrared thermometer can only measure temperature and needs to measure each accessory one by one. Compared with traditional infrared thermometer, ZK-178K can measure multiple temperatures of accessories once and potential problems can be clearly displayed on the screen.

It also has a wide range of measurement and photography functions to work in a variety of shooting environments. For example, the built-in high brightness lamp allows you to easily find the tested object in dark environment.

This product adopts a new generation of sensor module to ensure excellent infrared resolution and multiple color plate mode.


Sensor Uncooled Focal Plane
Temperature Range 30°C ~ 45°C
Resolution 0,10C
Accuracy ±0.5°C (@ 25°C ambient temperature)
Optimal Measuring Distance 1m
Temperature Measurement Response Time ≤500ms (95% of reading)
Thermal Resolution 19200 (160 × 120)
Pixel Dimensions 12μm
Palettes Iron red, rainbow, glowing white, glowing black, glowing red, lava, high-contrast rainbow
Bandwidth of Infrared Spectroscopy 8~14μm
Field of View (FOV) 56°(H) × 42°(V)
Instantaneous Field of View (IFOV) 6mrad
Thermal Imaging Sensitivity <50mk
Frame Rate <9Hz
Temperature Display Center temperature measurement and high temperature tracking (default)
Image Format BMP
Image Modes Thermal camera, visible camera, image blending
Temperature Measuring Point Besides central point, 3 temperature measuring points can be added
Resolution of Visible Camera 640×480
Display Resolution 320×240
Image Blending 0% (total visual camera), 25%, 50%, 75%, 100% (total thermal camera)

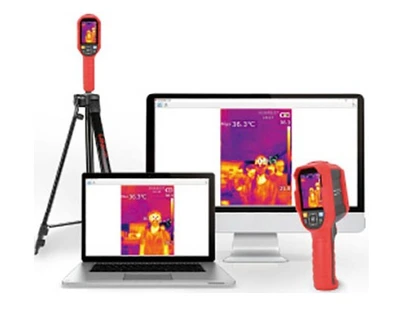

Real-time Image Transmission PC software image projection
Data Communication Type-C USB
Auto Power Of Selectable (5min, 10min, 30min), 30min auto power off (default)
Battery Life ≥6 hours
Charging Time ≤5 hours
Charging Voltage/Current 5V/2A
Image Storage Micro SD card
Power A single Li-ion 3.7V/5000mAh 26650 battery
Display 2.8″ TFT LCD
Product Color Red + Grey
Product Size 236mm x 75.5mm x 86mm
Standard Carton Gross Weight 2.2kg
