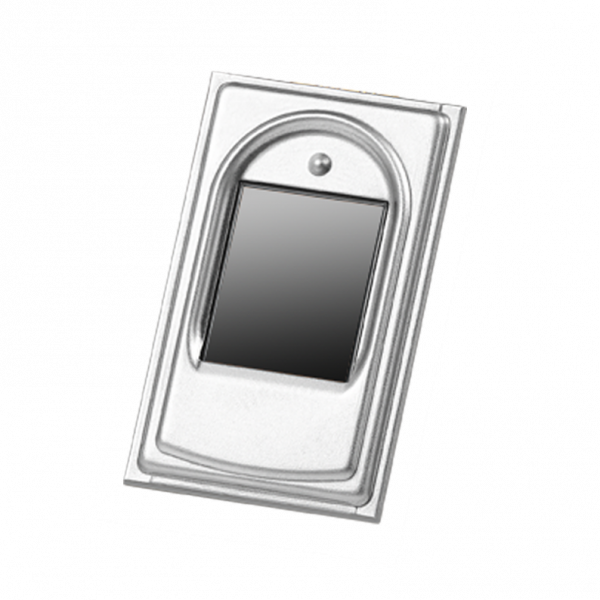

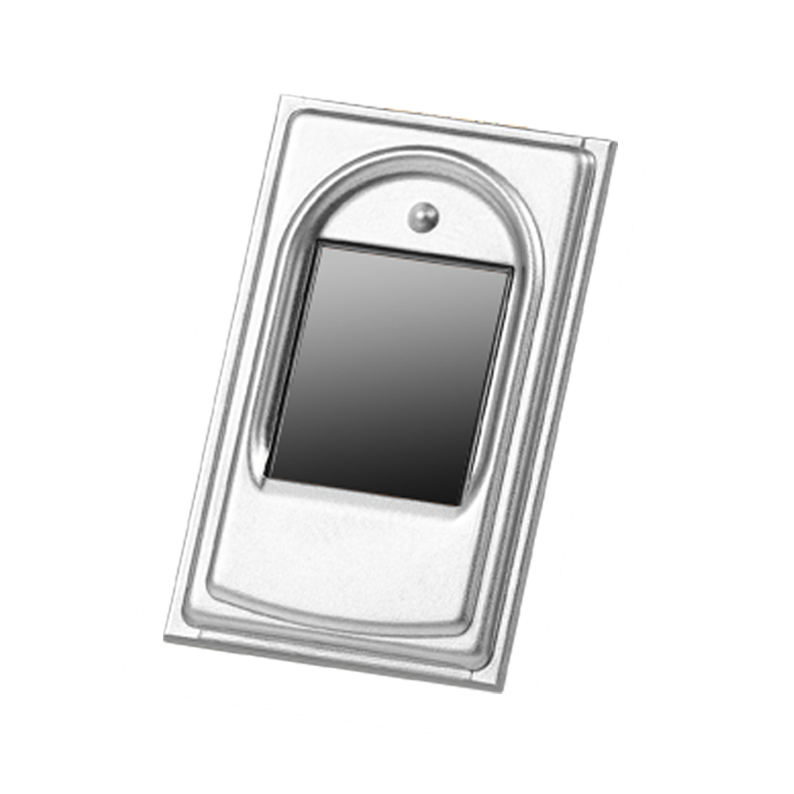

EM-3011A Fingerprint Module

Chat for Price

In stock

  • International Standard
  • High Image Quality
  • Strong Adaption
  • Cloud Platform
  • OS Support
  • SDK
SKU: EM-3011A Categories: , , ,

Technology for fingerprint capture, Aratek EM-3011A Scanner is compatible with lose International standards including ISO and ANSI. It is used for authentication in different industries such as finance, healthcare or hospitality.


  • International Standard
    ISO19794-2, ISO19794-4, ANSI 378, ANSI 381 and WSQ.
  • High image quality
    Capacitive fingerprint technology with superior image quality
  • Good adaptation
    Good adaptation on dry, wet or rough surface
  • Correction and authenticity
    Supports auto correction and 360 degrees of rotation in authenticity.
  • Cloud Platform
    Perfectly join Aratek TrustLinkTM authenticity biometric platform.
  • Compatible OS
    Windows2000, XP, Vista, Windows7 / 8/10, Android and other systems
  • SDK
    Smart software kit is available for development and installation.


Physical Parameter
Dimension 33*20*5mm (L*W*H)
Performance Parameter
Capture Mode Capacitive Touch
Platen Size 15.3*11.4 mm
Sensing Area 14.4*10.4 mm
Fingerprint Image Size 256*288 pixels
Image Resolution 508 dpi
Gray level 256 level
Communication Mode
Communication Interface UART (TTL 115200bps default),
Operation Environment
Work Voltage 3.8-5V
Work Current 50mA
Temperature  0°C~55°C
Humidity 20~90%R.H
ESD Contact: ± 6KV Air: ± 8KV
Supported OS
Windows  XP / 7 / 8 / 10, Android


  • PC/Network Security
  • Hospitality
  • Finance and Banking
  • Telecommunication
  • Healthcare
  • Law Enforcement
