Trilogy 100 Invasive & NIV Ventilator

Chat for Price

In stock

Light, versatile and easy-to-use, that’s the Trilogy100 portable ventilator at its essence.

With its light weight and proven technology, Trilogy100 makes invasive and non-invasive treatment less complicated for a wide range of adult and pediatric patients.


Philips Trilogy 100 can be used as Invasive & Non Invasive Ventilator.

AVAPS-AE AVAPS-AE is a bi-level therapy mode that automatically adjusts Expiratory Positive Airway Pressure (EPAP), pressure support, and the backup breath rate.AVAPS-AE automatically adjusts EPAP to maintain a patent airway. It also monitors delivered tidal volume and adjusts pressure support accordingly to provide the average target tidal volume. AVAPS-AE has the ability to maintain a backup breath rate based on the patient’s own spontaneous breathing rate

Adjustable AVAPS
This feature allows clinicians to adjust the maximum rate of response at which the pressure support automatically changes to achieve the target tidal volume.A higher rate allows the AVAPS algorithm to change pressure support quickly to meet the target tidal volume. It can be set from approximately 1 cm H2 O per minute to 5 cm H2 O per minute.


Keeping care teams in the know
Trilogy is now connected to Care Orchestrator, our HIPAA-compliant cloud-based patient management system. With the ability to transmit data wirelessly and remotely, Connected Trilogy helps providers deliver quality respiratory care, gain efficiencies, potentially avoid unnecessary home visits, improve care coordination, streamline workflow and prioritize patient need.
Continuous respiratory support for added freedom and mobility

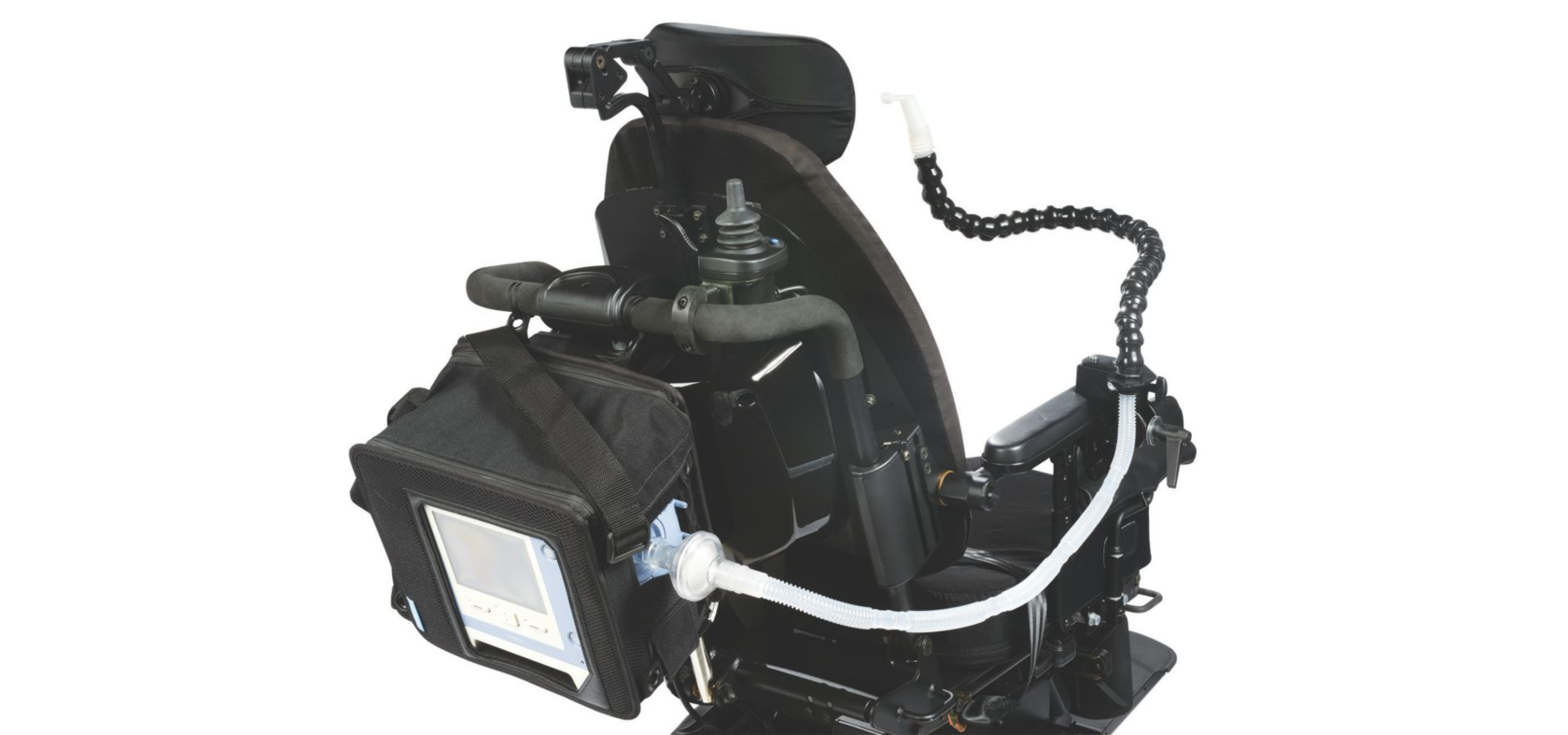

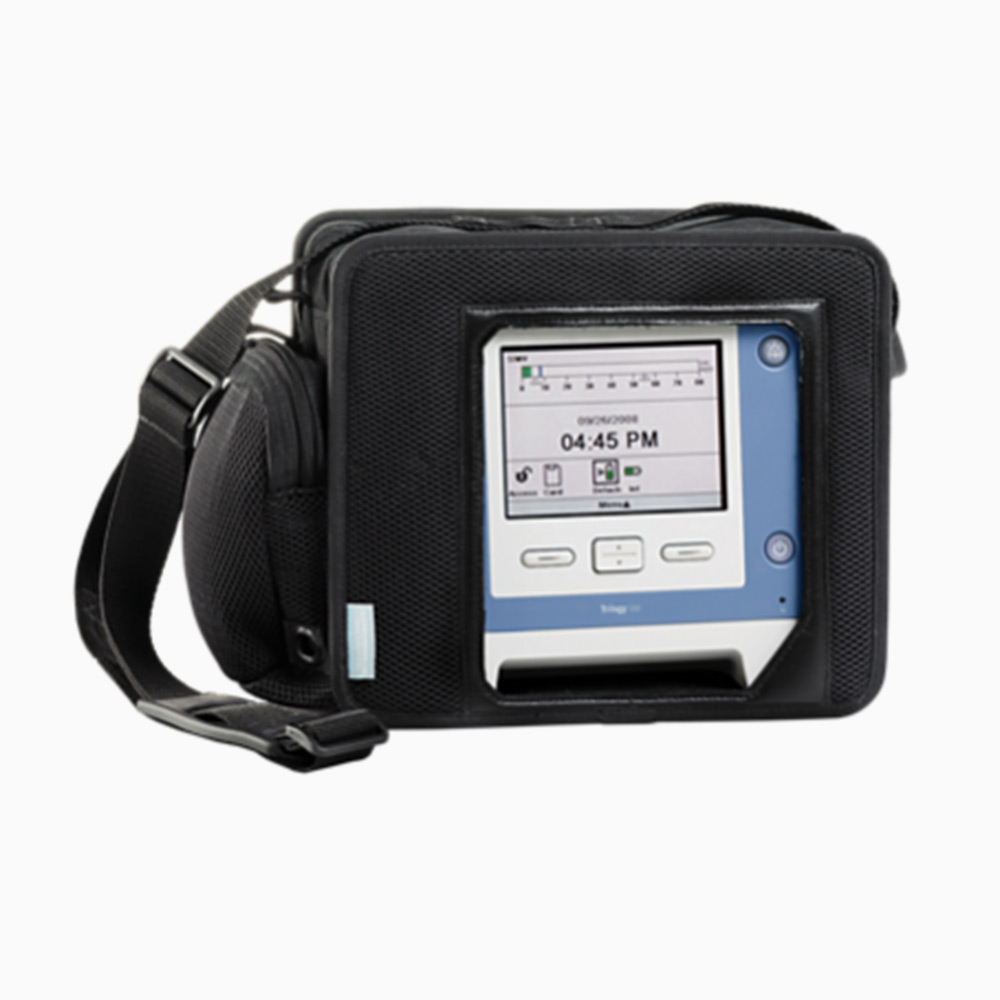

Trilogy provides respiratory support to meet your prescribed needs, up to 24 hours a day. Trilogy is portable with internal, hot-swappable detachable, and external batteries to provide greater freedom and mobility with continuous ventilation. The easy-to-use carry bag is wheelchair-mountable and designed so the screen is always visible.
Easy to use and adaptable for your patients’ changing needs
Trilogy is designed with easy-to-read and navigate screens, multiple Rx settings and on-screen waveforms to help optimize treatment. Trilogy’s pressure- and volume-control features allow you to provide more types of therapy with one device. The ability to use multiple modes for patients who require varying levels of ventilation, allows greater flexibility in care.
Adapting with every breath
AVAPS-AE–an auto-titration mode of non-invasive ventilation with multiple algorithms that work simultaneously–meets the changing needs of your patients. AVAPS automatically adjusts to breathing, while Auto EPAP proactively adjusts to the lowest effective pressure for peak comfort. Auto Backup delays a machine breath until the patient has exhaled to reduce air trapping.Delivering on-demand ventilation
With no inspiratory effort required to trigger a breath, our unique ‘kiss’ trigger detects when a patient engages and disengages from the mouthpiece to deliver on-demand ventilation with the security of patient alarms.When sensitivity is needed most
This adaptive algorithm automatically adjusts the triggering and cycling of the ventilator, while compensating for leaks. Digital Auto-Trak’s capability contributes to the patient’s synchrony and comfort, without requiring manual adjustments. The Sensitive Auto-Trak setting provides an enhanced triggering response for patients with minimal respiratory effort.Enhance patient mobility and care with
Trilogy accessories From power options and circuit adapters, to reporting software and alarms, Trilogy’s array of accessories helps give patients and families more freedom and mobility while maintaining effective treatment.

The support and training you need
The innovative technology of the Trilogy family sets it apart from the rest. The support, service and upkeep behind all of it keeps it there, including 24/7 clinical support, educational training resources for both you and your patients and extended warranties and maintenance plans.

Dimensions and Weight
Dimensions 16.68 cm L x 28.45 cm W x 23.52 cm H (6.6″ L x 11.2″ W x 9.3″ H)
Weight 5 kg (11 lb)
Circuit types Active with PAP; passive
Ventilation types Pressure and Volume
Volume modes AC; SIMV (w/PS); CV; AC-MPV
Pressure modes CPAP; S; S/T; T; PC-SIMV (w/PS);PC-MVP; AVAPS-AE
Pressure 4 to 50 cm H₂O
IPAP 4 to 50 cm H₂O
PEEP/EPAP for active circuits 0 to 25 cm H₂O
PEEP/EPAP for passive circuits 4 to 50 cm H₂O
CPAP for passive circuits 4 to 20 cm H₂O
PEEP for active circuits 0 to 25 cm H₂O
PEEP for passive circuits 4 to 25 cm H₂O
PEEP for passive circuits 4 to 20 cm H₂O
Pressure support differential 0 to 40 cm H₂O
Apnea rate Off; 10 to 60 sec
Circuit disconnect Off; 5 to 60 sec
High tidal volume Off; 50 to 2000 ml
Low tidal volume Off; 40 to 2000 ml
High minute ventilation Off; 1.0 to 99 l/min
Low minute ventilations Off; 0.2 to 99 l/min
High respiratory rate Off; 4 to 80 BPM
Low respiratory rate Off; 4 to 80 BPM
Measured patient parameters
Respiratory rate 0 to 80 BPM
Minute ventilation 0 to 99 l/min
Vte/Vti 0 to 2000 ml
Leak rate 0 to 2000 l/min
Peak inspiratory flow 0 to 2000 l/min
Peak inspiratory pressure 0 to 99 cm H₂O
Mean airway pressure 0 to 99 cm H₂O
% Patient triggered breaths 0 to 100 %
I:E ratio 9.9:1 to 1:9.9
Tidal volume 50 to 2000 ml
Breath rate 0 to 60 for AC mode; 1 to 60 BPM for all other modes
Inspiratory time 0.3 to 5.0 sec
Rise time 1 to 6
Ramp start pressure 0 to 25 cm H2O for active circuits; 4 to 25 cm H2O for passive circuits; 4 to 19 cm H2O in CPAP cm H₂O
Ramp length Off; 5 to 45 min
Flex Off; 1 to 3
Flow trigger sensitivity 1 to 9 l/min
Flow cycle 10 to 90 %
Apnea rate 4 to 60 BPM
Apnea rate Off; 10 to 60 sec


Meet the Trilogy ventilator family Trilogy ventilators are designed to go seamlessly with patients from the hospital to their home, providing the same level of quality care and comfort.

Trilogy 100 ventilator  Trilogy 200 ventilator  Trilogy 202 ventilator
• For use in home, post-acute care facilities and hospitals.
• Invasive and noninvasive ventilation for both adult and pediatric patients.
• On-screen waveform display allows clinicians to check patient triggering, cycling, and synchrony.
• Flexible triggering options include Digital Auto-Trak, Sensitive Auto-Trak and Flow Trigger.
• All the features of Trilogy 100, plus extra triggering sensitivity utilizing a proximal flow sensor.
• The extra triggering sensitivity decreases the work of breathing, providing increased comfort and patient/ventilator syncrony.
• Specifically designed for use in hospitals.
• Includes all the features of the Trilogy 200.
• Also features an integrated blender that provides oxygen administration from 21 to 100 percent.
