BD9300 Biometric Desktop

Chat for Price

In stock

  • Open Operating System
  • Card Reader
  • High-speed Printer
  • Wireless Communication
  • Multi-Interface
  • GPS
SKU: BD9300 Categories: , , ,

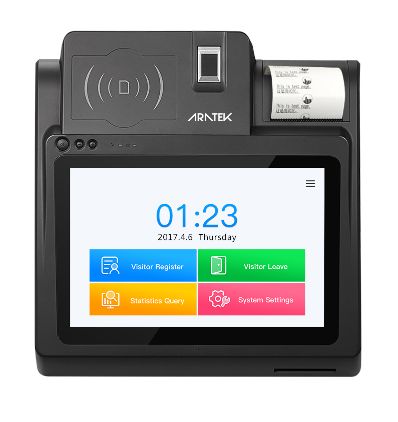

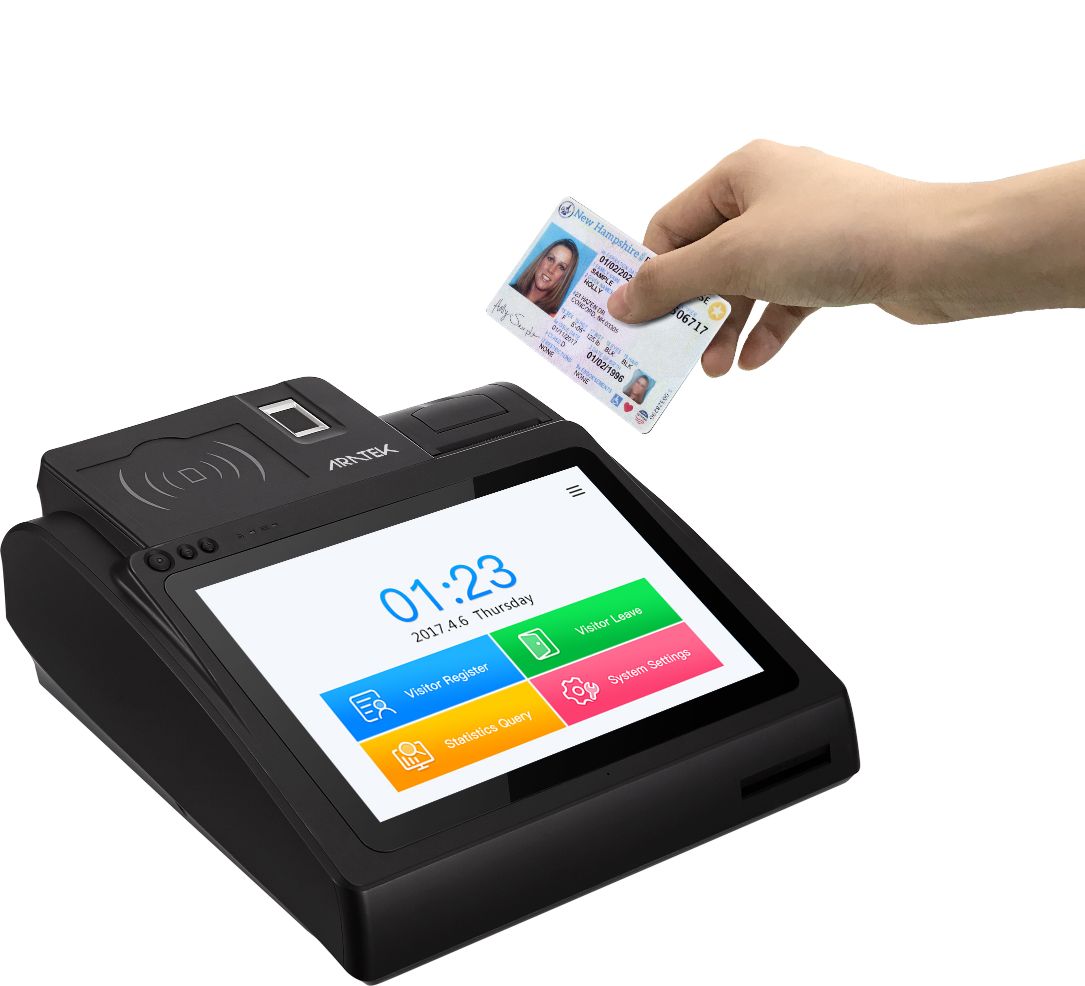

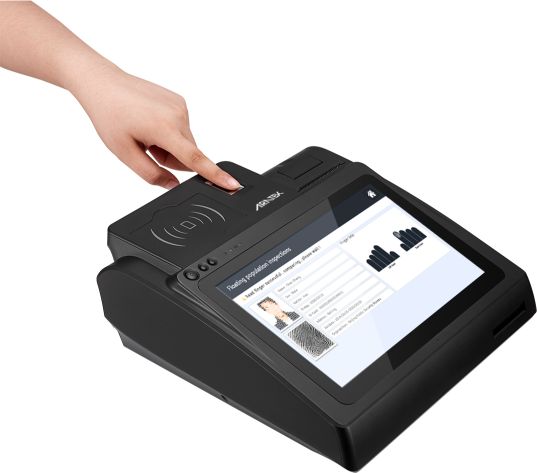

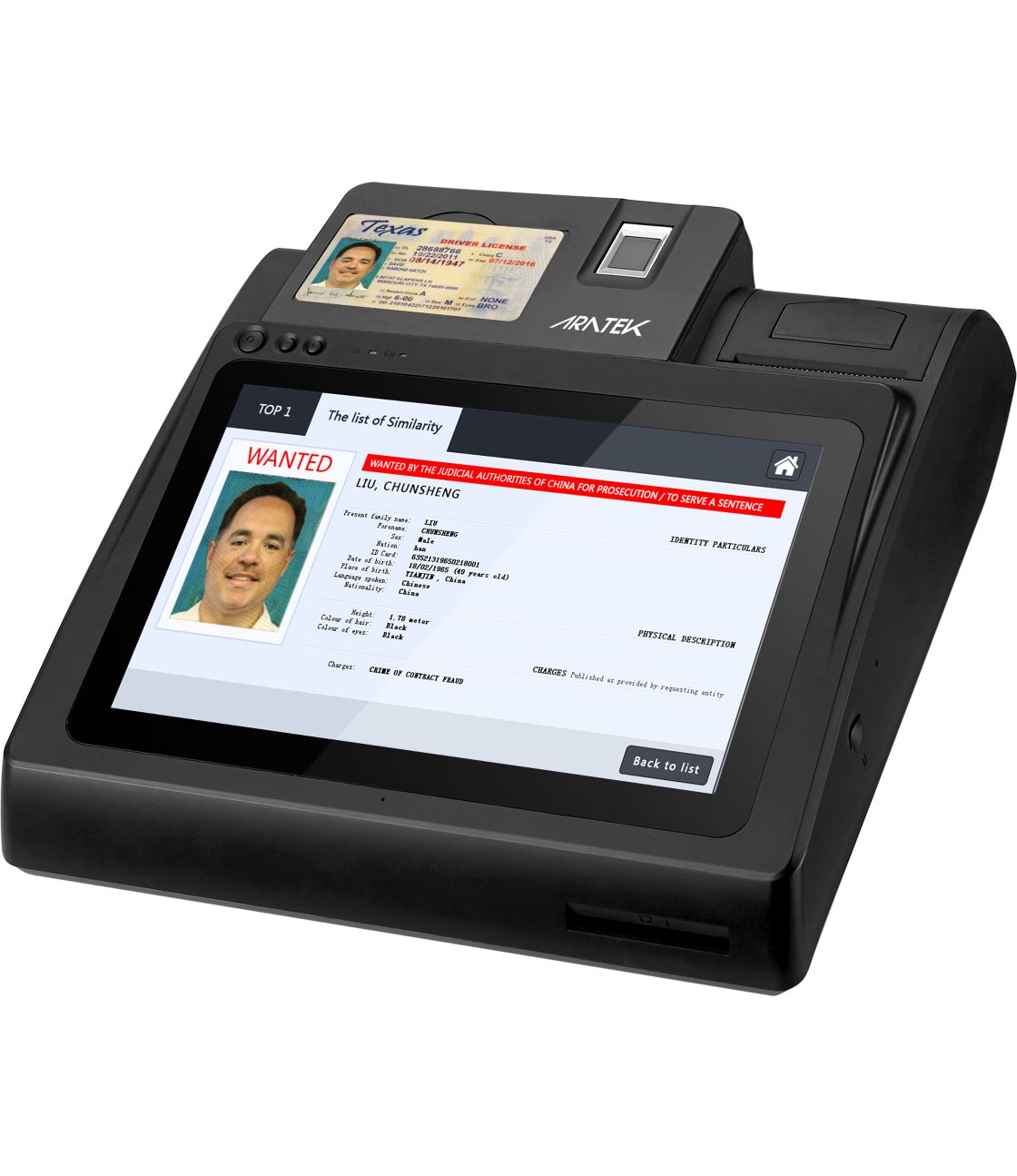

Integrated. Durable. Reliable. The ARATEK BD9300 All-in-one Biometric Desktop packs every component needed
to perform biometric identification and authentication in one desktop. With an ultra-accurate scanner,
high-speed printer, and card reader, the ARATEK BD9300 makes the most challenging jobs easy. It features 3G, 4G,
Wifi, NFC and Bluetooth connectivity for secure data transfers even from remote locations, making it perfect for
a great range of applications such as financial services, National ID, health care, and law enforcement.


  • Open Operating System
    Android 5.1 operating system, customizable for various applications
  • Card Reader
    Equipped with contact and contactless card reader
  • High-speed Printer
    2-inch high-speed printer
  • Wireless Communication
    With 2G / 3G / 4G, Wi-Fi and Bluetooth, data transfer is as easy as 1-2-3
  • Multi-Interface
    USB 2.0, Micro USB (OTG), RJ45 interfaces support
  • Removable Battery
    2,200mAh / 7.4V battery for data backup
  • GPS
    Accurately locate the position of the device, auto record, show and playback the travelled route
  • Strong Fingerprint Authentication
    FBI-certified capacitive sensor, fully compliant with FAP10, ISO19794-2, ANSI-378, WSQ standard


Physical Parameter
Operating System Android 5.1
Processor Quad-core 1.3GHz
Memory 1G RAM + 8G ROM
Display 10.1 Inch Capacitive G+F 5-point
Resolution 1280*800 IPS
Printer 2″ thermal printer
Interface USB 2.0 *2, Micro USB (OTG) *1
SIM Card Standard SIM Card *2
Expansion Card TF card, Up to 64G
Battery 2200mAh / 7.4V
Weight 2350g
Dimension 290*292*104 mm (L*W*H)
Fingerprint Capture Capacitive Press
Platen Size 14.5*19.7mm
Sensing Area 12.80*15.24mm
Image Size 256*360 pixels
Image Resolution 508 dpi
Gray Scale 256 level
Wireless Communications
WIFI 802.11 b / g / n
3G/4G GSM / GPRS / EDGE: B2,B3,B5,B8
FDD: B1,B3,B7,B8,B20
GPS GPS Supported
Bluetooth Bluetooth 4.0
Credential Reading
Contactless Reader ISO 1443 Type A / B
Contact Card Reader  ISO 7816


  • National ID
  • Financial Service
  • Patrol System
  • Voters Verification/Enrollment
  • Retail POS Solution
  • Time Attendance
