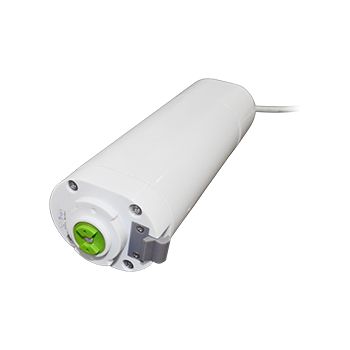

SMART CURTAIN MOTOR – Home Automation System

Smart Curtain Motor, supports remote/local control, time setting, scene management and linkage control. It can control following devices:

  1. Shutter in the bedroom
  2. Shutter in the high windows
  3. 3. Shutter on the balcony


  •  Open or close the curtain by a touch or press on the switch panel or via App, free your hand.
  • Support time setting and linkage control to bring convenience.
  • Design of noiseless; Stop when facing with obstacles.
  • Keep the traditional operation method.


Power Parameter:                                             100-240AC 50/60Hz
Standby Current:                                              ≤0.1W
Input Power:                                                     80W
Load Capacity:                                                  100Kg
Rotate Speed:                                                    80rpm
Rated Current:                                                 0.34A
Installation Method:                                      Clamping Hold
Working Temperature/Humidity:              -20℃~+65℃ / ≤95%RH(non-condensing)
Material & Color:                                            PC, Grey
Dimensions (L*W*H):                                   310*68*50 (mm)
Net Weight:                                                      1025g
Gross Weight:                                                  1240g
Communication Mode:                                 IEEE 802.15.4 (ZigBee/SmartRoom).
